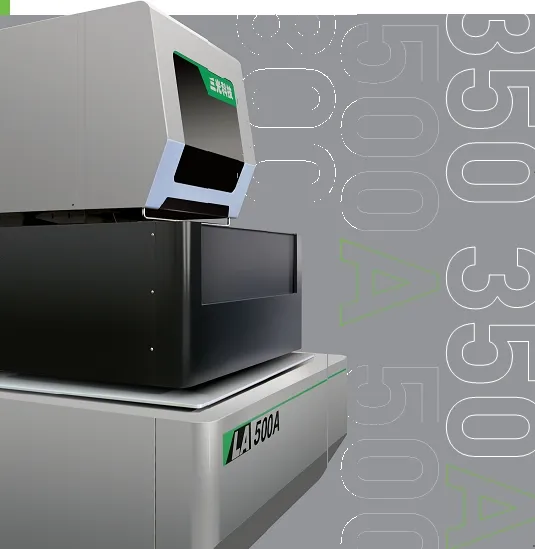

Large Scale CNC Machine Tool Brass Wire Cutting EDM Machine

Product Description

Product Features
1.FullClosed-loop Control
Imports linear grating and ball-screw, linear guide-way of THK guaranteeing high precision for a long time
2.LRT1 Intelligent power
LRT1 Intelligent power can get high roughness as well as high productivity
3.Convenient Operation
Operations panel and interface of ergonomic design, Windows XP and touchingscreen, operates conveniently, learns easily
Main Configurations:
European FAGOR linear grating
Japanese THK ball-screw and linear guide-way
Grundf0s pumps
Japanese Mitsubishi AC Servo system
Japanese inverter
Windows XPE
Touching screen, mouse
Product Parameters

Worktable Dimension(L×W)	1210×820mm
Worktable Stroke(X×Y)	800×630mm
Z Stroke	36mm
Max. workpiece height	1300mm/1000mm(Submerge)
Max.workpiece weight	1200Kg/900Kg(Submerge)
Max.cutting angle/height	±20°/100mm
Max.cutting speed	≥300mm2/min
Best Roughness Finish	Ra≤0.4 µm
Machining Methode	Flush
Wire Diameter range	0.15~0.3mm
Machine dimension(L×W)	3600×3500mm
Machine Weight	6800Kg

Detailed Photos
Excellent Performance Corner Control
Abundant and intelligent cornercontrol to the all kind of cornercondition,machining with optimacontrol automatically and power,which can get high precision ofthe corner
Cheking Instrument&Equipment

Elaborate ProduceWe earnestly carry out every aspedt ofthe machine details. Most of machinecasting is machining by 5 axis- ceriteiand every key parts are checked byCMM
1 5-center machining
2 Machine accuracy checked by laser system
3 Parts checked on CMM of" ZEISS"
4 Machine accuracy checked by"Renishaw" ball
Automatic Threading
Fusing cut wire systemIt makes wire heating,strengththen cut wire, the head of brasswire becomes sharpness, whichmakes the wire thread into smalhole with narrow gap easily.Make sure the success rate ofauto wire thread
Wire sending-receiving system
The system open the electrodesending-receiving system, whenthe threading and wire breakrestore not in a good condition
Packaging & Shipping

Company Profile
Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.
Company History
1966 :Suzhou No.3 Optical InstrumentFactory 1968 :Started to research Molybdenum wirecut EDM machines with photoelectric tracing
1969 : Developed and produced GDX-1model 1982 : Developed and produced SSX-3molybdenum wire cut EDM machine based onSingle-board machine controller 1984 :DK7725D machine won the NationalSliver Medal 1989 : The company entered into partnershipwith COSMOS international MachineryCo.,Ltd Hongkong to set up a joint venture called Suzhou Sanguang Electric MachineryCo.,Ltd 1994 : Sodick Co.Ltd Japan entered intopartnership and the name of the companywas changed into Suzhou Sodick-Sanguang Electric Machinery Co.,Ltd 1995 : Started to research and producedDK7632 Brass wire cut EDM machine
2008:Relocated at No.145 SongshanRoadSND China, plant area 38060m² 2010 :Multi-cutting molybdenum wire cutmachine, HA series were released
2012 :The latest Brass wire cut machine, LAseries were released 2014 :Became a public company ,stockcode :430414 2016 : Developed and produced HB400,whichwon IF award of 2017
2018 :Released the latest Linear Motor machine HB400L
