Solid Liquid Sedimentation Plate Basket Centrifuge Stainless Steel Filtration Centrifuge Equipment

Product Description

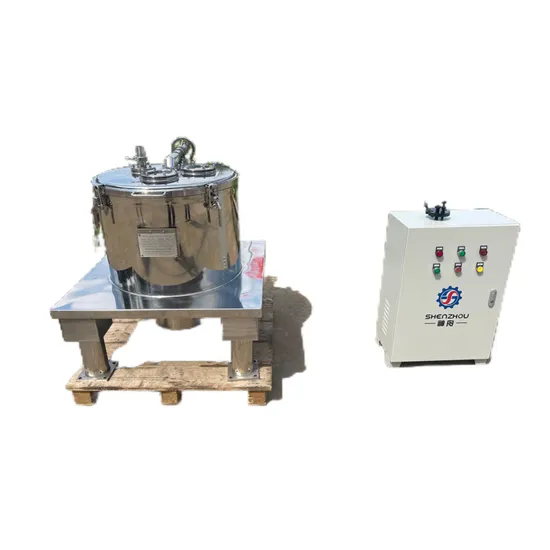

Product Description Solid liquid sedimentation plate basket centrifuge stainless steel filtration centrifuge equipment
PSC type sediment centrifuge is used for the large solid content in feed solution, fine particles,
but also difficult to filter the nature of manufacturing high density difference between a use state of separation equipment can be used alone, but also as a tube pre-treatment process separator the use of centrifuges in operation and linked to contrast and cup, such as bowl speed and the same diameter, the aircraft has a large capacity, the advantages of simple operation.
Specifications PSC slab based on the discharge centrifuge drum parts, direct motor driven drum rotates at high speed itself, forming a centrifugal force field, no pass-falling high-speed centrifuge, high speed and large separation factor.Equipped with a closed upper lid and write catheters, feeding tubes feeding from the top center of gravity into the center of the fabric devices, liquid by the fabric is uniformly deposited on the drum wall devices, high-speed centrifuge spin, the role of the centrifugal force field with solid material deposited on the drum inside the liquid by siphon write-liquid discharge device, the solid will be discharged manually after stop from the top.

Technical Parameters

Detail The skimming liquid tube The machine running at highest speed and separation, just rotate the skimming liquid device after separated well, the liquid will be discharged from the tube and flow out. Due to the density difference, the liquid will be inner layer. The bowl of sediment centrifuge The bowl is the main part of sediment centrifuge, no hole. Different from normal filter bag centrifuge.All stainless steel material, meet GMP standard.The solid in the bowl need to be discharged manually after stop. The upper cover of sediment centrifuge The upper cover has feeding port, skimming liquid tube, also observe port and light hole.If need explosion proof function,we can add nitrogen feeding port for protection.All the port on the upper cover, the size can be customized. The motor of sediment centrifuge We can provide standard normal motor or explosion-proof motor. Normal power supply is 380V 50Hz 3-phase 4.0Kw. Different in different country can be customized. Such as 220V or 415V, 50Hz or 60Hz, 1-phase control box Application
Applies to both solid phase for the granular filtering, it can be used for dewatering fibrous material, particularly high viscosity, fine particle size, toxic and hazardous, flammable materials in the filter.
For example: gypsum, thiamine, Glauber's salt, copper sulfate, nickel sulfate, a chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw materials, fertilizer, oil, all kinds of resin, salt, MSG, food additives, starch sugar, vitamins, antibiotics and other drugs, herbicides, insect repellents, copper, zinc, aluminum ore dehydration, metal refining, volleyball acid plaster, water treatment.
Company Profile
LiaoYang Shen Zhou Machinery Co.,Ltd belongs to SHENZHOU international Group. We are the professional manufacturer of Centrifuge & Separator, Liquid Filling Machine and packing machine. With many years producing experience, our factory have become leading manufacturer with professional technical team and Independent after-sale department.Our international trade department can supply the whole project service. With many years development, we have known which factories have strong product with competitive price and we have built long-term and stable cooperation relationship with them. Our main area are the food and pharmacy project. Our successful project are coconut oil production line, liquid filling production line, packing production line and the tablet press production line, soft gelatin production line and so on. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers!
Exported country: At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 30 countries
Packing & Delivery
FAQ
1.we are the leading manufacturer in pharmaceutical machinery, centrifugal separator and packaging machine. We know how to design and manufacture reliable, durable and lasting machine for you.
2.We treasure our reputation more than anything. We fulfill each promise. We offer the best we can. We want in return is your satisfaction, your acceptance and -- the friendship.
3.We are 400 km from Dalian Port, convenient and time-saving for shipping goods. We are 120km from Shenyang Taoxian International Airport, convenient for you to visit us.
a) 12 months warranty. Life time technical support service.
b) Our engineer's door-to-door service is available at buyer/user's request at cheaper cost.
c) Free replacement of spare parts within warranty period.
d) Within 24 hours online responding to customer's questions.

---
