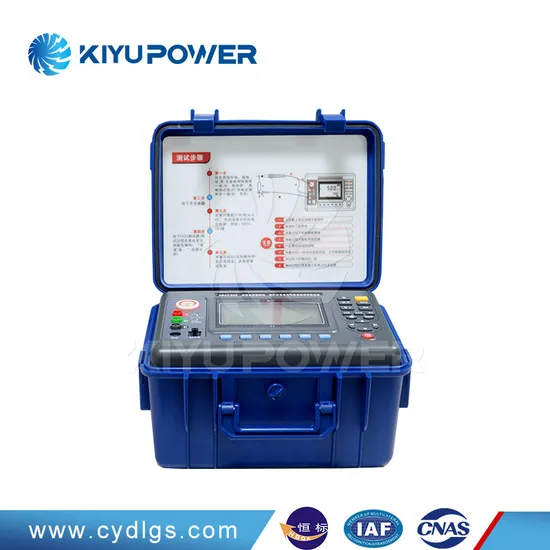

This insulation resistance tester is composed of medium and large scale integrated circuits. It has arge output power, 6 output voltage levels,
synchronizing test absorption ratio and polarization index.
Kind Note: Insulation resistance testing must be working under no living circuits.
| Functions | Insulation resistance testing, voltage testing |
| Basic Terms | 23ºC± 5ºC, less than 75%rh |
| Rated Voltage(V) | 100, 250, 500, 1000, 2500, 5000 |
| Measuring Voltage(V) | Rated voltage x (1±10%) |
| Insulation Resistance Range(GΩ) | 0.01MΩ~1000GΩ |
| Insulation Resistance Resolution | 0.01MΩ |
| DC Voltage Range | 0~1000V |
| DC Voltage Resolution | 0.1V |
| AC Voltage Range | 0~750V |
| AC Voltage Resolution | 0.1V |
| Output short-circuit Current | ≥5mA(5kV) |
| Absorption Ratio & Polarization Index | Yes |
| Power | 12V charge lithium battery |
| Background | Adjustable pale screen background light, suitable for gloomy lots using |
| Display Model | 4 bytes large LCD display, pale screen background light |
| LCD Display Size | 108mm x 65mm |
| Instrument Sizes | Length/Width/Height 277.2mm x 227.5mm x 153mm |
| USB Interface | USB interface, software monitoring, reserved datas can be upload to computer, save and print |
| Communicating Line | USB communicating line 1 set |
| Testing Line | HV rod red 3m, hv testing line black 1.5m, green line 1.5m |
| Data Reserve | 500 groups, flash display"FULL" means data reservation is full |
| Data Inquiry | Data inquiry function: "READ" mark display |
| Spilling Display | Over measurement spilling function: "OL" mark display |
| Alarm Function | Alarm prompt when the measuring value exceeds setted value |
| Power Consumption | Standby: 30mA Max(background turns off) |
| Power on background turns on: 42mA Max |
| Measure: 300mA Max(background turns off) |
| Instrument Weight | 2720g(include batter) |
| Battery Voltage | when the battery voltage isn't adequate, it shows low energy mark" |
| Auto Turns off | Auto turns off if there is no operation in 15 mins |
| Insulation Resistance | ≥50mΩ(between testing line and housing) |
| Withstand Voltage | AC3kV/50Hz 1 min |
| Working Temperature and Humidity | -10ºC~+50ºC<85%RH |
| Save Temperatur and Humidity | -15ºC~+55ºC<90%RH |
| Suitable for Specifications | IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529(IP54), Pollution level 2, CAT III 300V |
