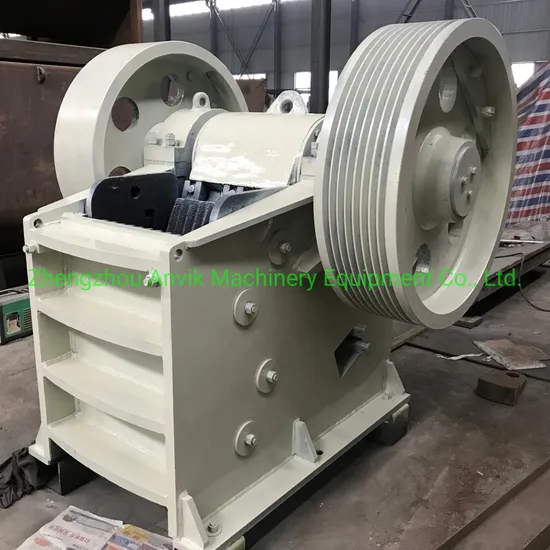

30-50tph Jaw Crusher with Attractive Price

Product Description

Introduction of Jaw Crusher
Jaw Crusher has been widely used in the fields of mining, metallurgical, construction, road and railway building, hydropower and chemistry etc. It is mainly applied in the primary crushing in which the compressive strength of original material is under 320Mpa.
Main Features and Benefits
1. Simple structure and easy maintenance.
2. Stable performance and low operating cost
3. Flexible discharge opening setting
4. High resistance to friction, abrasion and compression with longer operating life span.
Operating Principle
This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Specifications

Model	Size of Feed Opening(mm)	Max Feed Size (mm)	Discharge Range Opening (mm)	Capacity (t/h )	Motor Power (kw)
PE-150X250	150X250	125	10-40	1-3	5.5
PE-250×400	250×400	210	20-60	5-20	15
PE-400×600	400×600	340	40-100	15-60	30
PE-500×750	500×750	425	50-100	40-100	55
PE-600×900	600×900	500	65-180	60-140	75
PE-750×1060	750×1060	630	80-180	90-230	90
PE-900×1200	900×1200	780	95-225	150-350	110
PE-1000×1200	1000×1200	850	195-280	180-400	132
PE-1200×1500	1200×1500	1020	150-300	400-800	160
PEX-150×750	150×750	120	18-48	5-16	15
PEX-250×750	250×750	210	25-60	10-40	22
PEX-250×1000	250×1000	210	25-60	15-50	37
PEX-250×1200	250×1200	210	25-60	20-60	45
PEX-300×1300	300×1300	250	20-90	25-95	55
