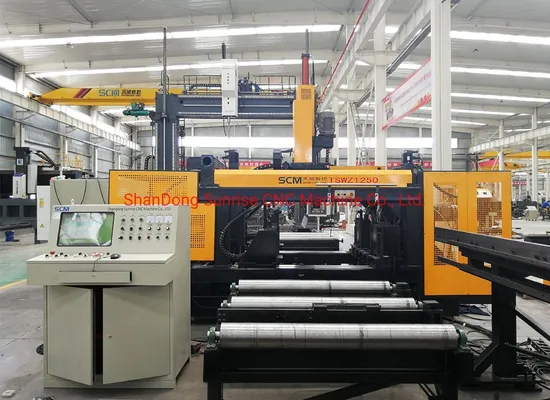

CNC Drilling Machine for H/U-Beams

Product Description

Application:
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
Specifications:

Model			TSWZ1250
Workpiece size	H-beams Max. (web height×flange width)	Max.	1250x600
		Min.	150x75
	Length (mm)		≥2000
	Max.thickness(mm)		80
	Drill dia. (mm)	Vertical drilling	Φ12~Φ33.5
		Horizontal drilling	Φ12~Φ26.5
Spindle units	Qty. of spindle		One spindle on each of three sides (top,left,right) Total: 3 spindles
	Rotation speed (rpm)		120~560
	Feeding speed(mm/min)		20~300
Marking	Qty. of characters		36 characters
	Character size(mm)		Φ10
Overall dimensions(LxWxH)(mm)			About 4800x3050x3520
Total power (kW)			34
Machine weight (Kg)			About 8000

Packing & Delivery
Packing Details : Packing, this model need 1*40HQ&1*40OT;
Delivery Details : 30-60 days after get the first payment.

1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Our Factory
Aftersale Service:
India and some other countries could provide to door service. For those we cannot go to factory at site, we will provide full details installation guidance and give remote support by internet (Wechat, whatsapp, zoom, telephone, email, teamviewer).
Our Certifications
SUNRISE is focus on quality and company's image. We win market with good quality and service. The company has already passed International Quality Management System ISO9001:2015 certification for many years and also got the CE certificate, smoothly got the title of High and New Tech Enterprises. And has more than ten own intellectual property rights and patent technology. We have own import and export right. Our products exported to Russia, South Asia, South east Asia, Middle East, South America, Africa, Australia, Eastern Europe etc.
Quality Make Brand, Honesty Win Market!
Innovation Promote Development, Harmony Converage Talents.
Thanks For All Customers Believe And Choose Sunrise CNC.

---
