Bolt Thread Machine, Thread Rolling Machine, Thread Machine

Product Description

thread machine
thread rolling machine
thread cutting machine
Screw machine

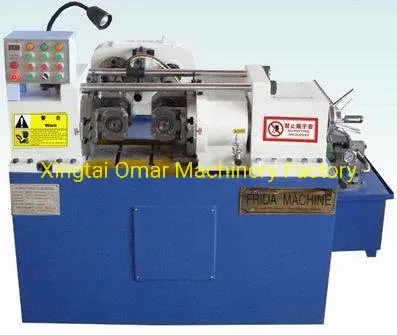

Z28-180 model thread rolling machine
Z28-180-type screw machine is mainly used for building all kinds of rolling wire through the wall, the top drag ,ladder-threaded and threaded and thread modulus workpiece, with a simple operation,high efficiency advantages.
quality thread rolling machine
Specifications & features: Professional thread rolling machine for bolts It's the very economic and convenient Easy to operate and adjustable, there are automatic, semi-automatic and hand control system for optional And steady hydraulic driving for rolling and high efficiency
Goods Thread rolling machine Model Z28-180
Pressure of roller max 180KN Dip angle of main shaft ±15°
Working Dia 54mm Rotary speed of main shaft 20,25,41,51,64
(r/min)
Thread Distance max 8mm Rolling Power 11kw
Roller Dia max 220mm Hydraulic Power 5.5kw
Diameter rollers 75mm Cooling Power 0.12kw
Roller Width max 180mm Weight 2200kg±50kg
Center distence of main shaft 150-300mm Size 1790×1730×1430mm

---
