High-Quality Plastic Pipe Machine Production

Product Description

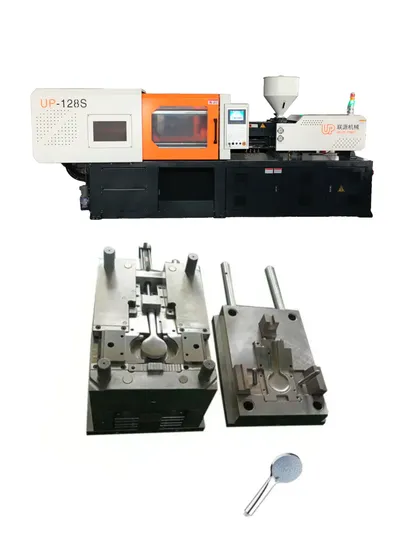

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
This China servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. offers advanced features for precise and efficient molding processes. Key specifications include:
Modulus of Capacitance: Ensures accurate positioning, size, and maximum allowable modulus of capacitance for the injection molding machine guide pillar (Green column).
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Specifies mold hole and slot size for precise molding operations.
Ejection Mechanism: Provides details on ejection point position, ejector rod diameter, ejection force, and stroke for efficient mold ejection.
Mold Opening Stroke: Features mold opening stroke and maximum opening distance for flexibility in molding processes.
Experience high-quality molding results with this innovative injection molding machine from Ningbo Union Power Machinery Co., Ltd.

Technical Parameters	Model UP-140T
Injection Unit	A	B	C
Screw diameter (mm)	38	42	45
Shot Volume (cm3)	215	260	302
Injection weight (g)	194	237	272
injection pressure (Mpa)	186	152	132
Screw speed (rmp)	215
Clamping Unit
Clamping force (KN)	1400
Open stroke (mm)	380
Max Mold height (mm)	450
Min Mold height (mm)	135
Space between tie bars(mm)	420*420
Ejector force (KN)	46
Ejector stroke (mm)	120
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	13(14)
Heating power (KW)	8.2
Machine dimension (M)	4.2*1.2*1.9
Machine weight (T)	3.4
Oiltank cubage (L)	190

---
