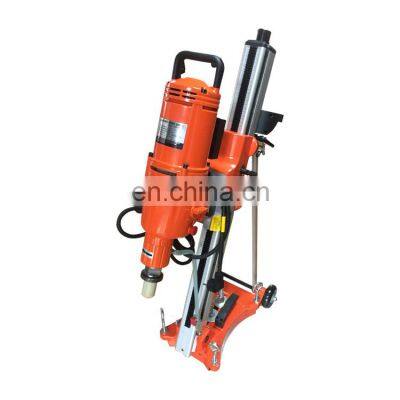

Electric high power diamond concrete core driling machine
Product Description
HZ-15 Electric drilling and coring machine adopts high speed cutting technology, matched with thin-wall diamond drill bit, which
is widely used for drilling and coring in engineering construction, municipal engineering, equipment installation engineering and
construction quality inspection engineering.
This machine is a series of diamond engineering drilling machine, powered by gasoline engine, which is quick to start up, easy to
operate and reliable to run.
Parameters
Product
| Electric drilling and coring machine
|
|
|
Model
| HZ-15
| HZ-18
| Z1Z-CF02-255B2
|
Maximum drilling diameter
| 205mm
| φ250mm
| φ255mm
|
Maximum drilling depth
| 200~700mm
| 200~700mm
| 200~700mm
|
Output speed
| 700r/min
| 600r/min
| 500/920 r/min
|
Power
| 3000W
| 3900W
| 2800W
|
Nominal voltage
| 220/240V
| 220/240V
| 110/220/240V
|
N.W./G.W.
| 18/24KG
| 25/30KG
| 35/39KG
|
Dimension
| 830*350*220mm
| 950*380*260mm
| 1080*380*380mm
|
Application
