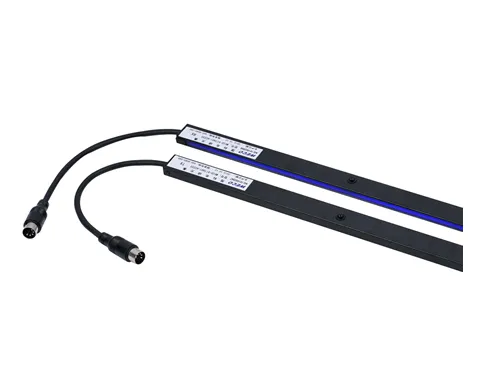

Weco Light Curtain for Cargo Elevator 11mm Thickness Centeral Opening

Product Description

ECO Light Curtain For Cargo Elevator Door Detector W10mm CE Certifcated Centeral Opening
Special desiign for cargo lift with economic price and most Clinets from India market ordered. It can perfectly repace WECO-917B71 model without any installation and working issue.
Working Voltage and cable:
Mounting Holese and Dimension:
Technical Specification:

Technical Features		917A6	917A7
Number of Infra Red Diodes		17 Diodes	32Diodes
Response Time	Relay Output	45ms	61ms
	Transistor Output	21ms	37ms
Scanning Beams		94~33 Beams	154~94 Beams
Infrared Diodes Range		117.5mm	58.8mm
The Mimimum Door Opening		≤20mm
The Maximum Door Opening		≥1800mm
Redundancy (one transimitter shielded after 120s detected absent)		NO	yes
Detecting Range		0-4000mm
Operation Temperature		-20ºC~+65ºC
Light Immunity		100000 Lux
Protection Level		IP54
EMC ( EN12015 EN12016)		General circuit level
LED Interpretation		1. Yellow LED and Red LED in Receiver on when blocked or in malfunction. 2. Yellow LED in receiver on and Red LED in receiver off without block.

Complete Safety light curtain includes as below:

	Item	Quantity
1	Power supply control box	1pcs
2	Durable flexible cable 3.5m	2pcs
3	Transmitter	1pcs
4	Receiver	1pcs
5	User manual	1copy
6	Mounting accessories	1set

What are the advantages of our team?
1.Have strength, good reputation.
2.Large production, timely delivery.
3.Quality assurance, after-sales warranty.
How can I place an order?
Click start to order or list your requirement to us by email.
Then we will send the offer to you ASAP,
after the order confirmed, we will arrange production ASAP.
How can I get a sample to check your quality?
We could provide the sample to you,
pls check the sample cost and freight cost with us.
How long can it arrive?
Depending on the order quantity and delivery method,
please contact us before ordering .
Can your products be customized?
Many of our products are customizable,
including material, size, thickness and printing,
you can contact us in advance, welcome to visit!

---
