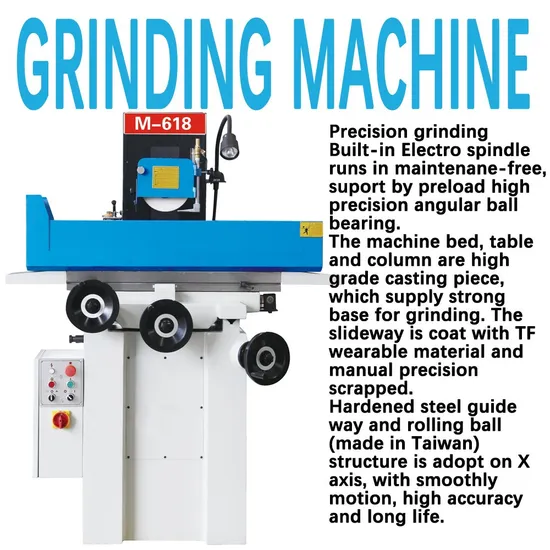

Saddle Moving Manual Surface Grinding Machine

Product Description

•Precision grinding Built-in Electro spindle runs in maintenane-free, suport by preload high precision angular ball bearing.
•The machine bed, table and column are high grade casting piece, which supply strong base for grinding. The slideway is coat with TF wearable material and manual precision scrapped.
•Hardened steel guide way and rolling ball (made in Taiwan) structure is adopt on X axis, with smoothly motion, high accuracy and long life.
•High precision cross and vertical lead screws are made in Taiwan.

SPECIFICATION		Model
		M618	M818
Table Size	mm	150x450	200x450
Max. Grinding Size	mm	160x470	220x470
Max. Distance From Table To Spindle Center	mm	450	450
Magnetic Chuck Size(Optional Equipment)	mm	150x400	200x400
Stroke of Table Left and Right Motion	mm	500	500
Stroke of Table Cross Motion	mm	185	240
Feed of Elevating Handwheel
Div.	mm	0.005	0.005
Rev.	mm	1	1
Grind Wheel Size	mm	200x13x31.75
Spindle Roating Speed	r/min	2850(50hz) 3450(60hz)
Power of Spindle Motor	Kw	1.5	1.5
Machine Weight	kg	750	900
Package Size	cm	1350x1110x1950	1400x1110x1950

Standard Accessories		Optional Accessories
Operating Manual	Working Lamp	Balancing Stand	Permanent Magnetic Chuck
Manual Oil Pump	Coolant Tank	Magnetic Separator	Parallel Wheel Dresser
Balancing Arbor	Wheel Flange and Extractor	Paper Filter	2 Axis Digital Readout
Standard Grind Wheel	Wheel Dresser Stand	Dust Exhaust	Sine Vise
Leveling Wedge and Screw	Tool Box and Tools	Sine Magnetic Chuck	Radius Dresser

---
