Error Processor (PTC-8001) of Energy Meter Calibration Test Bench

Product Description

Product Description
There is an error display window of every meter, using 6 digit high luminance LED nixie tube to display the relative error or the test state sign of the relative tested meter. The first digit shows the of the error, when the error is negative, it shows"-",when the error is positive, it does not show;The last 5digit uses 5 digit decimals to display the relative error. The following schematic diagram shows the relative error of the tested meter is-0.0023 %.
Connect the sampler that matches to each tested meter to the photo electrical input " " of HPU-8001. The HPU-8001 displays the error of each tested meter.
If the meter has pulse output, break the connection between infrared collector and the photo electrical input " "of HPU-8001. Use special cable to connect the pulse output of the calibrated meter with the photo electrical input " "of HPU-8001.connect the red clip to the +5V terminal of pulse and the black clip to 0V.
If HPU-8001 works abnormally, the user can press HPU-8001"reset"botton, and HPU-8001 will regain the normal program automatically. In the process of the bench test,it you want HPU-8001calculate again,you can press "reset" button. Certifications
Company Profile

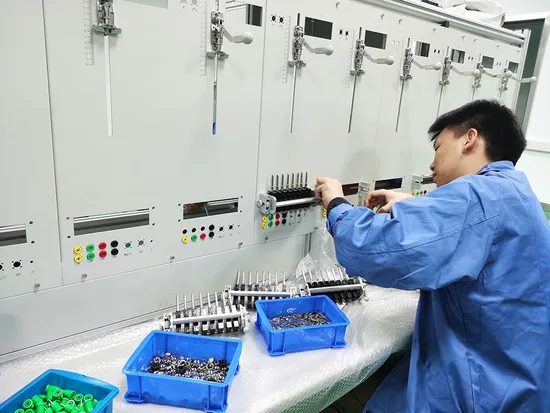

Hanpu, founded in 1992, is a high-tech enterprise integrating R&D, manufactures and sells devices and systems for producing, measuring, testing and calibrating electric/kwh energy meter. Currently, over 400 employees are committed to precision of the highest quality, in total four R&D centers in Haiyan, Suzhou, Ningbo and Xiamen, and has a domestic first-class electric automation R&D team and independent intellectual property rights.Utilities, test laboratories, national metrology center and electric energy meter manufacturers are among our customers worldwide.Professional Service at the decisive moment is important. You can choose different levels of accessibility including on-site and remote support. We offer spare part , maintenance and reliability checks and warranty extensions.

---
