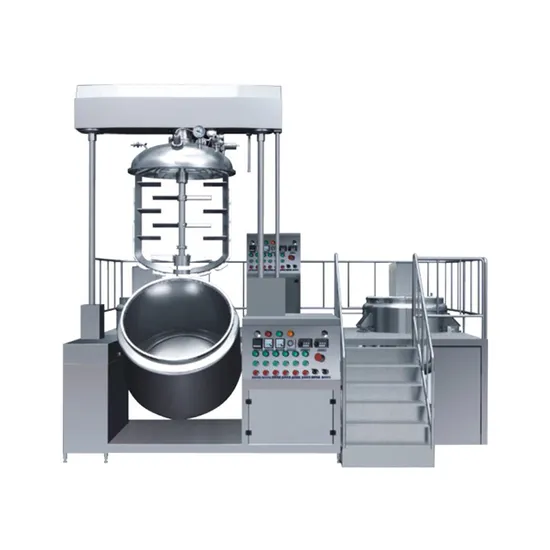

High Speed Ointment Vacuum Emulsifying Machine Body Lotion Emulsifying Machine

Product Description

Working Principles:
In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smashed paddles
Purpose:
The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.
Feature and simple introduce:
It is the structure of horizontal cylinder (cone).
Full sealed driving shaft, to use water when cleaning.
Fluidization granulation, the finished granules are similar to roundness with good liquidity.
Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
Whole operation has the strict safety precautions.
Main Technical Data:

Volume	400L
Output	50-150kgs/batch
Operating time	Mixing:2min Granulation:7-14min/batch
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed	25-220rpm
Mixing power	22kw
Granulation Speed	50-3000rpm
Granulation power	7.5kw
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air	Φ10mm
Height of the output	985mm
Dimension	2420×1060×2150mm
Weight	1900kg

Installation and after sales service:
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period:
There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine's life.
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.

---
