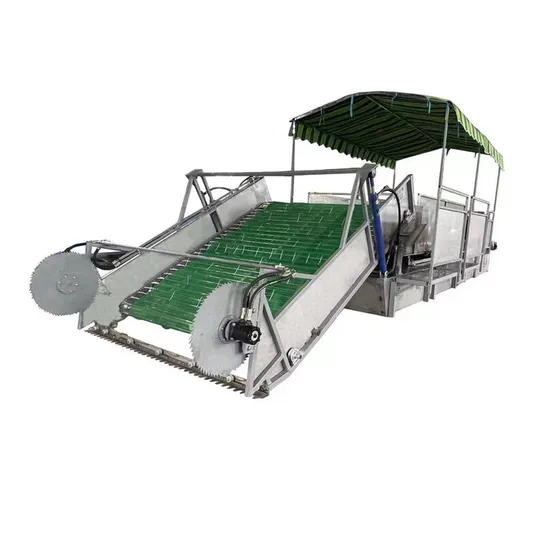

River cleaning machine/boat/ship to collect the floating trash aquatic weeds in reservoirs rivers and lakes
Product Package
|
stainless steel river harvester host+ pontoon+railing+diesel engine
|
River harvester parameters
|
Dimension
| Harvester host 2.75M*2M(L*W) Pontoon 4.8M*2M(L*W)
|
Three knives
| 2 meters horizontal knife, 0.7 meter vertical knives
|
Underwater mowing depth
| 25-85 cm
|
Material
| Blades, chains, tubes, frame, bearing use stainless steel
|
Weight
| About 1100kg
|
Pontoon(foam inside,stainless steel outside)
|
Each board 2 meters wide, 1.2 meters long, 0.35 meters thick. It consists of four sections, which can be assembled.
At the same time with a strong board to protect the surface of the ship, stepping on it will not be hot.
|
Propeller
| 12HP Diesel propeller
|
River cleaning machine,which can be used in rivers,lakes,reservoirs,parks and other environments to clean up water plants,duckweed,lotus leaves,water hyacinth,reeds,etc.
| 1.The inside of our ship board is foam and the outside is covered with stainless steel. Compared with pure steel ships, our cost is lower and the price performance ratio is higher. |
| 2.Compared with other fully automatic large ships, our ship is smaller and dexterous, with a height of only 1.3 meters, and it can easily pass through the bridge hole. |
| 3.Our harvesting width is 2 meters, while the harvesting width of other large ships is usually only 1.2-1.5 meters.So the work efficiency is high. |
| 4.It doesn't need to be disassembled, it can be directly loaded into a 40ft container, so don't worry about installation. |
1. Labor saving: The working efficiency of one machine is equivalent to the working efficiency of 30 people
|
2. Easy to transfer: under the premise of ensuring the rigidity of the lawnmower, the weight is reduced as much as possible to facilitate the manual lifting of the turning pond
|
3. Unique design: reduce the distance between the scissors part and the conveying part to prevent the cut grass from falling into the pond.
|
4. Easy to disassemble: The scissors part, conveying part and foam hull can be easily disassembled for maintenance and conveying. The main shaft is not welded.
|
5. Reduce water inflow and extend service life: The steel pipe of the conveying rack is completely closed, and water cannot enter the steel pipe, which can reduce rust and thus prolong service life
|
6. Easy to use: insert 48V battery pack, you can easily use the switch
|
