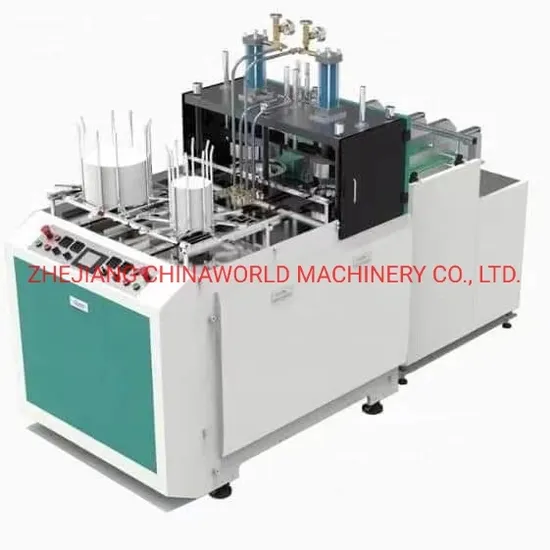

Cw-Zdj600 Disposal Paper Plate /Dish Forming Machine

Product Description

New Model ZDJ-600 automatic paper plate forming machine:
Product Description
CW-ZDJ600 type high speed automatic paper dish (dish) is based on the needs of the market and developed independently with automatic pneumatic suction paper feeding, automatic heating molding, dish and constant temperature control, automatic counting, multi disk and other functions, can be directly supporting the production line. The production of various specifications of paper plate is circular, square paper dish shaped and paper disc (disc) of the ideal equipment.
CW-ZDJ600 paper dish machine is combination principle of hydraulic and mechanical combinedcompared with the traditional automatic paper plate machine, , has higher production speed, more stable performance, safe operation, maintenance and more humanized structure design more convenient.
CW-ZDJ600automatic high speed paper dish machine adopts the fast type oil pressure system, the maximum pressure can reach 5T, it has the advantages of faster, more environmental protection and energy saving compared with the common cylinder
CW-ZDJ600 high speed automatic paper dish (disc) machine is widely used in the production of paper or aluminum foil as raw material of the dish (disc)
Product Parameters

Model	BC-PZT
Paper disc specifications	4-11 inch (opposite sex paper plate) abrasive is interchangeable
Materials	180-800 g/m2 of paper
Production speed	45-75 per minute
Power requirements	380V 50HZ
Total power	5.5KW
Weight of equipment	600KG
PLC	Delta
Touch screen	Kunlun
Frequency converter	United Kingdom
Low voltage electrical appliances	Zhengtai
Light eye	Omron
Hydraulic system	Asdanton
Bearing	Harbin
Upper silver guide	Taiwan
Solenoid valve	Yadek
Machine specifications	3500*1300*1850 mm
	Two sets of random molds, machine aluminum alloy shield

ABOUT US
ZHEJIANG CHINAWORLD MACHINERY CO.,LTD is a profecianal machinery manufacturer and export company.Our machinery factory is specialized in producing all kinds of non-woven and paper products machine.Such as Face Mask Making Machiney,Non-woven Bag Making Machine,Non-Woven Cap and Shoe Cover Machine,Paper Cup Machine,Paper Straw Making Machine,Paper Plate Making Machine,Paper Cover Making Machine etc.
