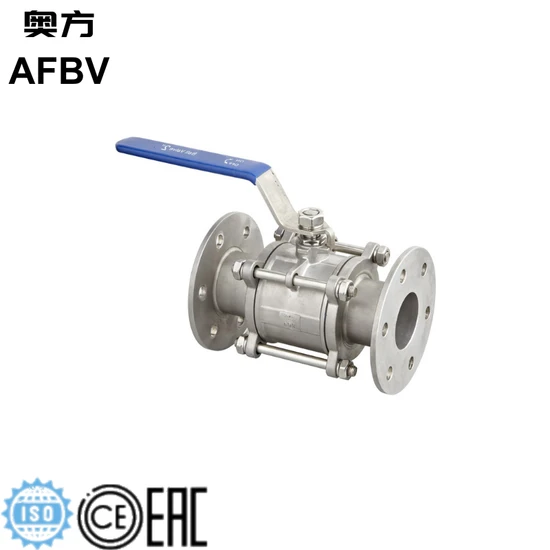

Middle Weight Three Piece Flange Ball Valve, No Lock Handle Option

Product Description

Product Description
Product Name: ANSI Stainless Steel Ball Valve with ISO5211 PAD
Key Features:
Floating Ball Design: Our ball valve boasts an innovative floating ball design, allowing unparalleled freedom of movement within the valve body. This exceptional feature permits both full bore and reduced bore configurations, optimizing fluid flow efficiency while minimizing pressure drops.
ISO5211 Mounting Pad: Designed for seamless automation, our valve incorporates a robust ISO5211 mounting pad. This ensures a secure and standardized connection for a wide range of actuator types, facilitating smooth and reliable operation.
Blow-Out Proof Stem: Our valve's stem boasts a blow-out proof design, guaranteeing enhanced safety and unwavering reliability even under extreme pressure conditions.
Seat Seal Material: Crafted with precision, our valve seats utilize premium PTFE/RPTFE materials, customizable to meet specific medium and temperature requirements. This ensures an impeccable seal and exceptional resistance across diverse fluid types.
Fire-Safe and Anti-Static Design: Featuring the API 607 Fire Safe Design, our valve is engineered to meet the pinnacle of safety standards, making it an exemplary choice for hazardous environments.Technical Specifications:Size Range: 1/2''-10'' (DN15~DN250)Pressure Rating: 150LB-600LB/PN16~PN100/10K~60KMaterial: A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCCSuitable Temperature: Designed to perform across a vast temperature spectrum of -196ºC to 450ºC, our valve requires specific materials tailored to each temperature range for optimal functionality.Suitable Medium: Engineered to handle a variety of fluids, including Water, Steam, Oil, and Natural Gas, among others.Design & Manufacture Standards: API 6D, API 608, BS 5351/DIN3357/JIS B2071Pressure & Temperature Standards: ASME B16.34/DIN3230Face to Face Dimension Standards: ASME B16.10/DIN3202/JIS B2002Flange Standards: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220Test & Inspect Standards: API 598, API 6D/DIN2401/JIS B2003Material List:Body: WCB, CF8, CF8MSeat: PTFEBall: CF8, CF8MO-Ring: FPMGasket: PTFEBonnet: WCB, CF8, CF8MBolt: 304Nut: 304Stem: 304, 316Stem Washer: PTFE+25% GFPacking: PTFEWear Washer: PTFE+25% GFGland: 304Disc Spring: 304Gland Flange: CF8Stopper: 304Hex Socket Bolt: 304Handle: WCB/CF8Application
Originating from the renowned valve hub of Wenzhou City, we are your ideal choice for seamless business operations. Our integrated factory and trading services offer you an extensive array of product categories, ensuring a smooth and efficient purchasing experience.d facilitating your purchase.
Мы приехали из города Вэньчжоу, известного как родной город клапанов. Выберите нас, чтобы сделать бизнес проще. Наша фабрика и торговля объединены, предоставляя больше категорий для вашего выбора и облегчения покупки.
Our product finds its versatile application across a myriad of industrial sectors, providing exceptional performance and reliability.
Наш продукт активно применяется в различных отраслях промышленности, обеспечивая высокую производительность и надежность.

Petroleum	Нефть и газ
Chemical Industry	Химическая промышленность
Natural Gas	Природный газ
Power	Электричество
Architectural Engineering	Архитектурное
New Energy	Новые источники энергии
Heating	Для обогрева помещений
Hot oil,Steam	Горячее масло, пар

Company Strength
Business Meeting
Overseas Exhibition
Production of Manufacturer
Why Choose us
Security Deposit Return Guarantee: At Wenzhou Afbv Valve Fittings Co., Ltd., we prioritize your peace of mind, offering a steadfast Security Deposit Return Guarantee. Rest assured that your investment is protected with us, as we are committed to providing a seamless and trustworthy transaction experience. Choose our Middle Weight Three Piece Flange Ball Valve with confidence, knowing that your security deposit is safeguarded, reflecting our dedication to your satisfaction and trust.

Order Size	Discount for Customers	Prpayrit quired	Cash Required
USD5000-20000	2%OFF	30%	USD200/CNY1500
USD20001-40000	2%OFF	30%	USD500/CNY3000
USD40001	2%OFF	20%	USD1000/CNY5000

FAQ
1. Whether the company is a factory or a trader?
We are the source factory of industrial valves, casting and finishing integrated operation, with
about 15 years of production and trade experience, we produce products adhere to quality,
through international certification, according to the market for technological innovation, with
cost-effective advantages, is the customer's favorite choice.
2.Where is the company address, can you see the factory offline?
Wenzhou AF Valve Fittings Co., Ltd. is located in Binhai Economic Development Zone,
Longwan District, Wenzhou City, with production advantages of the source factory, specializing in
the production of bellows valve series and other industrial valves. Welcome customers to visit the factory and discuss cooperation.
3. Is the company's product certified?
The company has passed EAC,ISO,CE certification, each product is produced in strict accordance
with the standard process, and must pass the quality inspection before it can be delivered to the
customer.
4. What is the company's delivery capacity?
It will take about 15 days for the goods to arrive from the time of customer's order to
shipment arrangement.
5. How about the after-sales service and warranty?
Warranty period: 12 months from the date of delivery; We will take care of all quality problems. If a longer warranty is required, it can be detailed and discussed.
6. May I have a sample?
Sure. We welcome you to order samples for testing and quality check. A wide range of samples
are accepted.
7. Whether custom is supported, MOQ?
We support the customization of different materials, specifications, sizes, types of valves.
Welcome to figure customization and send detailed parameters. Minimum order quantity: 20pcs
8. Shipping method and payment?
We support sea freight and air freight. Payment terms support L/C T/T D/P, etc
9. Why choose us?
1 We offer genuine products of high quality at competitive prices. 2. We have worked with
customers in more than 60 countries and regions around the world and know the market very well. 3.We have been focusing on industrial valves for more than 15 years, and you can rest assured when working with us. 4. The after-sales service will be very satisfactory. Any questions and feedback will be answered in a short time
10. What is the packaging like?
Outer packing wooden cases, woven bags, export wooden pallets, foam filled inner packing, to
ensure moisture-proof, sealed, strong packing, light weight, easy to transport.
Do not hesitate , call us action!

---
