Product Description
Product Description

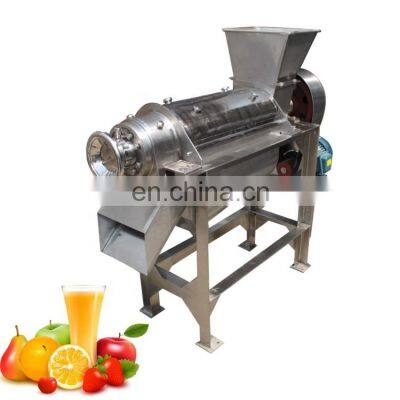

Introduction of Fruit Pulping Extractor Machine
Juice extractor machine is an ideal machine for making jam, fruit juice and vegetable juice. Juice extractor machine is suitable for fruits and vegetables, such as: orange, grapes, kiwi, mulberry, bayberry, peach, etc. Juice extractor machine can also extract vegetables, tomatoes, peppers, celery, etc. Juice extractor machine is a important equipment for fruits and vegetables processing enterprises. Pulp and slag separation type fruit juicer is the preferred model of catering industry and food industry. It can cut fruit into pulp shape and set fruit pulp and slag apart through pulp outlet and slag outlet.
Structure of Fruit Pulping Extractor Machine
Juice extractor machine mainly includes cylinder screen, broken blade, scraper, shaft, frame and transmission system.The cylinder sieve is a slag and juice separation device with two ends open, which is installed horizontally in the shell and fixed on the rack.The propeller, the broken blade and the scraper are arranged in sequence on the shaft driven by the transmission system.
The raw material is added into the hopper and pressed under the push of the screw. Juice squeezed by it flows into the juice container at the bottom through the filter net, while the waste material is discharged through the gap formed between the screw and the tapered part of the pressure regulating head. The pressure regulating head can adjust the size of the gap along the axial movement.
Feature of Fruit Pulping Extractor Machine
1. Fully automatic achieved juicing and slag removal procedures of berries, fruits and vegetables.
2. Parts in contact with materials are made of high quality 304 stainless steel.
3. Wide application range, simple operation, high quality, easy maintenance.
4. Juice extractor machine has different production models available for both individuals and factories
Parameters of Fruit Pulping Extractor Machine
Model
| Capacity
| Power
| Size
|
TZ-0.5
| 0.01-0.5T/h
| 1.5kw
| 1000×320×1280mm
|
TZ-1.5
| 0.3-1.5T/h
| 4kw
| 1560×450×1640mm
|
TZ-2.5
| 0.6-2.5T/h
| 11kw
| 2200×600×1960mm
|
TZ-5
| 1-5T/h
| 22kw
| 3000×1000×2600mm
|
FAQ
1. What raw materials can be processed by Fruit Pulping Extractor Machine?Fruit Pulping Extractor Machine is suitable for fruits and vegetables.
2. Are you manufacturer or distributor?
We are the experienced manufacturer and exporter. We own a technical team comprised of over-average experts in R&D and innovation. Notably, we own high-level factories and cooperating factories who can offer efficient manufacturing and high-end products when dealing with bulk order.
3. How do I know about details and quality of your machine?
First, we have product brochures covering all details including parameter, material, output, etc. of most of our production lines; secondly, we can provide you with videos filmed on-site with details about working process and how mechanical parts works during operation; at last, you are warmly welcomed for on-site inspection at our factories.
4. Why choose us?
We have dedicated in the machinery manufactory industry for more than 10 years with rare negative response. We are time proven-- client’s response and comments is the most validate evidence.
Packaging & Shipping
We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.
Our Services
1.Manufacture Service
(1) Provide goods according to customer need.
(2) Keep superior quality forever.
(3) Finish deal with reasonable price.
2.Online Service
(1) Timely response online by Skype or Trade Manager.
(2) Keep in touch by Email or Phone.
3.After-Sales Service
(1) Offer service for your project or factory building.
(2) Repair Maintenance in the guarantee period.
(3) Installation and clerks training.
(4) Spare and wearing parts provided for free or big discount.
Ask feedback from you to serve you better in the future.
Feedback
Company Information
Zhengzhou Taizy Machinery Co. Ltd in Zhengzhou, is a large-scale industrial group mainly
specialized in the food processing machines, covers Fryer Machinery, Fruits and vegetables
processing Machine, Paste Processing Machinery, Meat Processing Machinery, Nut Processing
Machinery. With years of manufacturing and Sales experience in machinery industry, let customer
satisfied is our ultimate aim, we got a good fame for providing high quality machines and best
service concept - quality first, service foremost.
