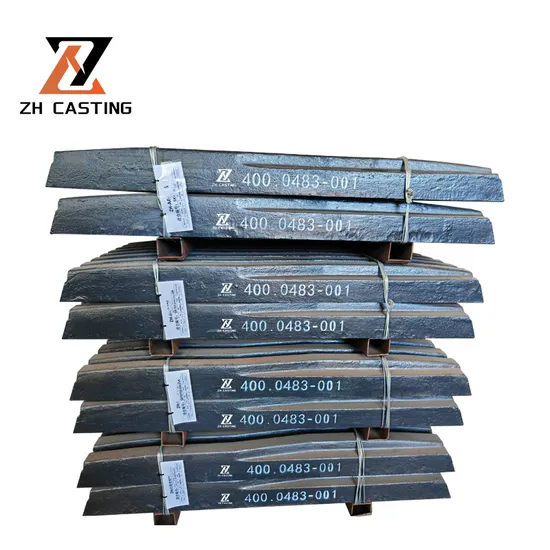

400.0483-001 Jaw Plate Jm907 Chromium Concave Mantle Cast Hammer Cone Crusher Parts

Product Description

Product Description
Product Name: Mn22/ Mn18/ Mn13 Jaw Crusher Parts Fixed/Swing Jaw Plat
Applications:
Wear spare parts for crushers. Designed to protect crushers and improve their working life.
Advantages:
1. 20 years experience, High wear resistance feature, long life time.
2. Production capability: 30000 tons Per year.
3. Certified by ISO system certification.
4. Large amount of stock for customer with competitive price.
5. OEM service available.
6.Compared with general market products, our products have smooth surface, accurate size, high wear resistance and longer life.
Casting materials:
Available material: Mn13Cr2, Mn18Cr2, Mn22Cr2, high chromium, high chromium with ceramic, martensitic, martensitic with ceramic, customized.

Material Code	C	Mn	Si	Cr	P	S	Mo	Ni	Hardness
ZGMn13Cr2	1.05-1.25	12-14	≤0.8	1.5-2.5	≤0.06	≤0.04	/	/	/
ZGMn18Cr2	1.1-1.5	17-19	≤0.8	1.5-2.5	≤0.06	≤0.04	/	/	/
ZGMn22Cr2	1.1-1.5	21-23	≤0.8	1.5-2.5	≤0.06	≤0.04	/	/	/
High chromium	3-3.5	0.5-0.9	0.4-0.8	25-27	≤0.06	≤0.04	0.3-0.5	0.3-0.5	HRC>60

Models we supply:

Suit for Mets0	C80 C96 C100 C106 C110 C120 C125 C130 C140 C145 C150 C160 C200 GP7 GP11 GP100 GP100S GP200 GP200S GP220 GP300 GP300S GP330 GP500 GP500S GP550 HP4 HP5 HP6 HP100 HP200 HP300 HP400 HP500 HP700 HP800 MP800 MP1000 B5100 B6150 B7150 B9100 NP1110 NP1210 NP1520 NP1620 NP1213 NP1313 NP1315 NP1415 NP1520 NP1620 42-65 48-74 50-65 52-65 57-74 54-75 60-110 60-89 62-75
Suit for Sandvic	JM907/CJ409 JM1108/CJ411 JM1206 JM1208/CJ412 JM1211/CJ612 JM1312/CJ613 JM1511/CJ615 JM1513/CJ815 CH420/H2800 CH430/H3800 CH440/H4800 CH660/H6800 CH870/H7800 CH880/H8800 CH890 CH895 S2800/CS420 S3000/S3800/CS430 S4800/CS440 S6800/CS660 CV215 CV216 CV217 CV218 CV228 CV229
Suit for McCl0skey	C38 C40 C44 C50 I34 I44 I54 J40 J44 J45 J50
Suit for Extek	C10/QJ240/QJ241 C12/QJ340/QJ341
Suit for KPI&JCI	K400 K300
Suit for Finlay	J1160 J1170 J1175 J1480 C1540 C1545 C1550 I-110 I-130
Suit for K0matsu	BR200 BR350 BR380 BR500 BR550
Suit for Sym0ns	2FT 3FT 4 1/4FT 4FT 5 1/2FT 7FT
Suit for Telcmith	SBS-38 SBS-44 SBS-52 SBS-57
Others	Suit for Kleenman MR130 110R/Z CM-741, CMД-108, CMД-109, CMД-110, CMД-118, КСД-1200 KMД-1200, КСД-1750 KMД-1750, КСД-2200, КМД-2200

Production:
Packaging and Shipping:
Company profile:
Hebei Zhuhong Industrial Co., Ltd. (ZH) is one of the leading wearing spare parts supplier in China. We provide a wide range of standard crusher spare parts for Cone Crusher, Jaw Crusher, HSI and VSI crushers from world famous brands and also supply some customized castings according to the customer's drawings and material composition.
We start from the raw materials of the product to control every production process. Each step of production process is complied with ISO9001-2008 requirement. Our quality control system includes Chemical analysis, Dimension measurement, Heat-treatment record, Metallographic inspection, Hardness test and other necessary steps.
With more than 20 years of production experience and annual production capacity of 15,000 tons, our products are widely used in quarrying, mining and recycling industry at home and abroad.
With advanced technology and sincere attitude, we insists on providing high-quality products and services for our customers, together we build a better future!
Why Choose Us:
FAQ:
1. Q: What kinds of products do you offer?
A: We are mainly on parts for jaw crushers and cone crushers and also impact crusher and hammer crusher spare parts.

2. Q: What kind of materials are using for the products?
A: We supply wear parts with various manganese content and for jaw crushers and cone crushers mostly the 13%, 18% and 22% manganese steel.

3. Q: What's the maximum single weight that can be casted, What is your processing capacity per day?
A: The single weight that can be casted at one time is 10 tons. The capacity is 40 tons per working day.

4. Q: What information do we need to provide to you in order to confirm our parts order?
A: For standard parts, just provide us the drawing No. so we could confirm the exact parts.
For non-standard products, provide us your drawings or detailed specifications for our technical staff could make the drawing.

---
