Chile Brazil Az150g Afp Gl Anti Finger-Print ASTM A792 Hot Dipped Galvalume Steel Coil

Product Description

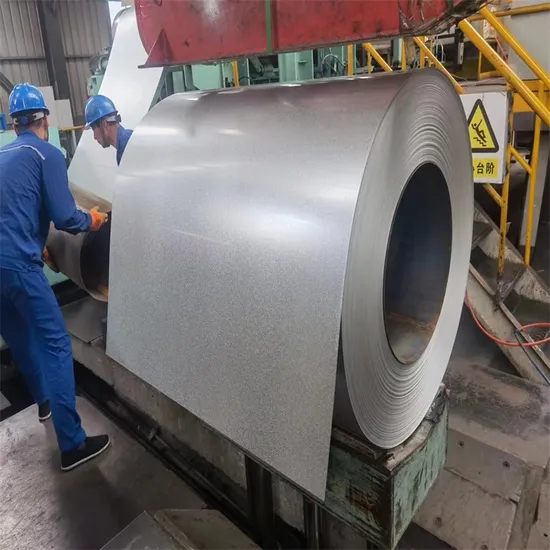

1. Hot Dip Galvalume Steel Coil description
It is a kind of coated steel coil/sheet. With the cold rolled steel of different strength and thickness as substrate, it is produced through
applying Al-Zn coat on both faces by hot dip process. In its coating,Al accounts for about 55%, Si 1.6%, while the remaining is zinc.
2. Hot Dip Galvalume Steel Coil main usage scope
1) Architecture roofs and outside walls of civilian,industrial buildings,garage doors,fencings
2) Appliances industry outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system,explosion-
proof strip,solar water heater and appliance
3) Auto industry muffler,heat shields of exhaust pipe and catalytic converter, auto parts& accessories under frame, signboard
4) Industrial instruments electric control cabinet, industrial refrigeration equipment
3. Hot Dip Galvaume Steel Coil packing
Each aluzinc steel coil tube wrapped by plastic film and waterproof paper, one steel strip strapping on the coil circumference. 3 - 5 coils
tube packed eye vertical on wood pallet, and strongly strapped by edge protection, and at least 4 steel straps through coil eye. Coil
tube packed eye to sky on wood pallet
4. Hot Dip Galvalume Steel Coil parameter
1) Formable, weldable and paintable
2) Superior long term corrosion resistance in the most atmospheric conditions.This is achieved through the combination of the sacrificial
protection of the zinc and the barrier protection
3) Hot dip galvalume coating out-perform galvanized coating from 2-6 times than galvanized steel

Product	Hot Dip Galvalume Steel Coil
Material Grade	SGCC / SGCH / DX51D+AZ, etc
Thickness	0.14-1.5mm
Width	10-1250mm
Tolerance	Thickness: +/-0.02mm , Width:+/-2mm
Zinc-coating	AZ40-275g/m2
Technique	Raw material: Hot rolled steel coil --> Cold rolled_>hot dipped galvalume
Surface	Dried, Chromated, Unoiled
Spangle	Regular spangle , small spangle, zero spangle
ID	508MM
Coil weight	3-6 tons
Export package	Cardboard inner sleeves, Waterproof paper, galvanized steel covered and steel strip packed

---
