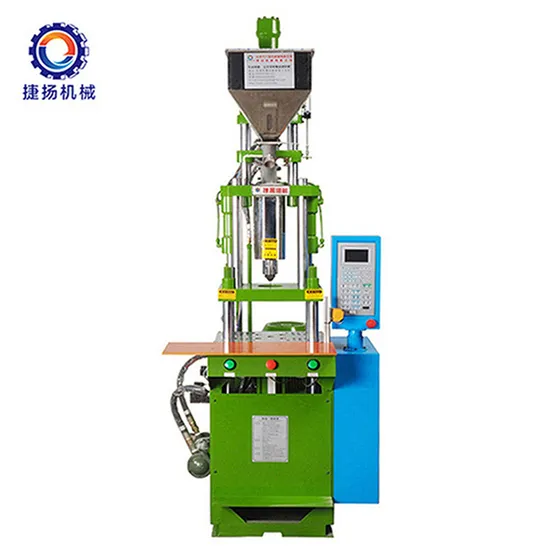

Supplier Price Professional Vertical Plastic Injection Molding Machine

Product Description

Supplier price Professional Vertical Plastic Injection Molding Machine
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same
time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure
mold clamping work together to greatly extend machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Parameter of Machine

Model	Unit	JY-450ST
Screw Barrel Diameter	mm	30	32	34
Injection Pressure	kg/cm2	1171	996	820
Max. Shot Weight	gram	74	84	106
Max. Shot Weight	cm3/sec	62.5	71	95
Screw Barrel Route	mm	115
Screw Barrel Rotary Speed	rpm	0-190
Nozzle Contact Force	tons	4.45
Nozzle Retraction Nozzle	mm	190
Number of Temperature Control	pcs	3
Clamping Force	tons	45
Platen Size	mm	580*430
Distance Between Tie Bere	mm	410*250
Min. Mold Height	mm	220/70
Opening Stroke	mm	200
Max. Opening Mold Distance	mm	420/270
Ejetor Force	tons	1.76
Ejetor Stoke	mm	35
Max. Hydraulic Pressure	kg/cm2	140
Pump Output	L/min	37.2
Oil Resservoir Capacity	Liter	130
Cooling Water Consumption	L/hr	600-800
Pump Motor Power	kw/hp	5.5/7.5HP
Barrel Heating Power	kw	2.8
Total Power	kw	9
Machine Weight	tons	1.8
Machine Dimension(LxWxH)	meter	1.7*1.2*3
Shipping Weight	tons	1.9
Shipping Measurements(LxWxH)	meter	1.82*1.18*2.45

Application :
About Us
Packing & Shipping :
Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4) After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

---
