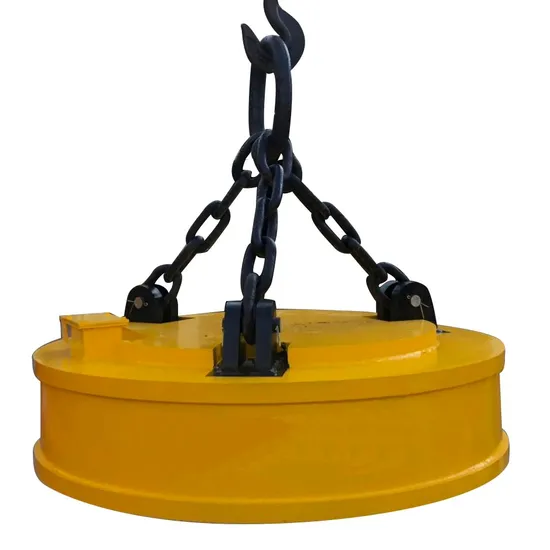

Powerful Magnetic Lifter for Heavy Scrap Metal Handling

Product Description

Crane electromagnetic chucks, also known as magnetic chuck and crane electromagnets, are mainly used for lifting magnetic materials such as steel in metallurgy, mining, machinery, transportation and other industries. Also it is used as an electromagnetic manipulator to clamp magnetic materials, and suitable for handling cast iron ingots, steel balls and various scrap steel. The excitation mode can be constant voltage mode, strong excitation mode and over excitation mode.
FEATURE & ADVANTAGE Crane electromagnetic chuck adopts fully enclosed structure and has good moisture resistance. Our crane electromagnetic is optimized by computer, the structure is reasonable, and the energy consumption is low. The excitation coil is treated by special process to improve the electrical and mechanical properties. The insulation material has a heat resistance grade of C and a long service life. Different structures and parameters are adopted for different items to be sucked, which can widely meet user requirements. The high-temperature electromagnet adopts a unique heat insulation method, the sucked material temperature from former 600 ºC to present 700 ºC, expanding the applicable scope of the electromagnet. Easy installation, operation and maintenance. PRECAUTIONS FOR USE Check whether the parts of the electromagnetic chuck are damaged before use, and replace them timely. Pay attention to the surroundings before lifting, and do not pass from the top of equipment and personnel Check whether the rated current is reached before lifting. Pay attention to the inspection before lifting, whether there is non-magnetic material between the lifting object and the lifting electromagnetic chuck, so as not to affect the lifting height. Crane electromagnet Cold-state power(kw):2.6-41.6 Lifting capacity: 500kg-40000kg Color: yellow/orange Rated voltage: according to client's requirement We can make products according to customer requirements.

Rated Capacity	Cylindrical Capacity	Max Tear-off strength	Length	Width	Height	Handle	N.W
(Kg)	(Kg)	(Kgf)	(mm)	(mm)	(mm)	(mm)	(Kg)
100	30	350	92	64	70	142	3
300	100	1050	165	88	96	176	10
500	150	1750	216	118	120	219	20
600	200	2100	236	118	120	219	24
1000	300	3500	264	168	168	266	50
1500	500	5200	353	172	168	380	70
2000	600	7000	378	230	217	462	125
3000	1000	10500	453	290	265	567	220
5000	1500	17500	647	290	265	707	355
6000	2000	19200	713	290	265	707	398

---
