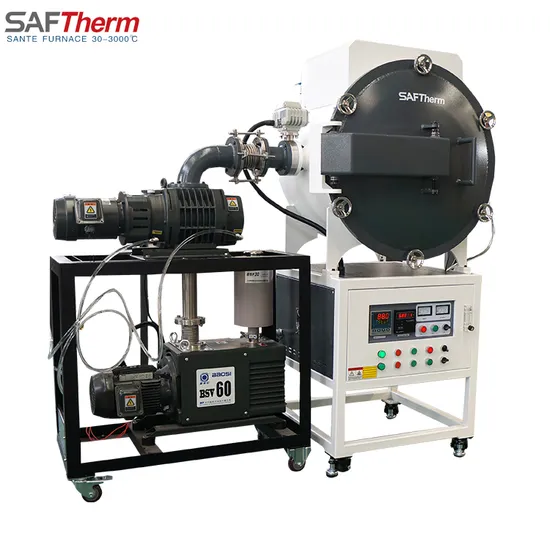

1200c/1400c/1700c Chamber Atmosphere Vacuum Furnace Vacuum Atmosphere Muffle Furnace

Product Description

Product Description
Product Overview:
The 1700°C vacuum atmosphere furnace can work under vacuum and protective atmosphere, and is widely used in the heat treatment of hard alloys, ceramics, powder metallurgy materials; it can also be used for vacuum quenching, annealing, high-speed steel, alloy abrasives, and brazing of soft magnetic materials and heat treatment of other materials. Mean Features:
1. Multiple gas inlets and outlets with stainless steel ball valves. Flow meter to control inbound and outbound gas flows.
2. Furnace chamber is welded and oil leak tested to ensure air tightness. Furnace door is sealed with high temperature silicon gasket.
3. Dual wall housing makesure the body cool during heavy use.
4. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
5. Built-in ammeter and voltmeter for easy monitoring and troubleshooting.
6. Built-in computer interface.
7. Long life type B thermocouple.
8. CE certified
Main Specifications

Model	STZ-1-17	STZ-3-17	STZ-8-17	STZ-12-17	STZ-20-17	STZ-36-17	STZ-45-17
Chamber Size (W xD xH)mm	100 x120x100	150 x150x150	200x200x200	200x300x200	250 x320x250	300x400x300	300 x500x300
Rated Temperature	1700ºC
Work Temperature	1600ºC
Power Supply	220V/2KW	220V/4KW	220V/5KW	220V/6KW	220V/7KW	380V/13KW	380V/18KW
Heating Element	U Type Silicon molybdenum rod
Chamber Materials	Polycrystalline inorganic alumina ceramic fiber material made by wet vacuum filtration methord
Temp control Accracy	±1ºC
Thermcouple	B Type Platinum Rhodium Thermocouple
Temperature Controller	Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function .Programmable 30 program segments for program heating, program heat preservation, program cooling
Heating Rate	1-10ºC/min can be adjustable
Furnace Structure	Furnace temperature control integrated structure
Equipment Protection	Modular control with sound and light alarm signal sending out for over temperature and thermocouple broken in the working process, and the protection action will be completed automatically
Safety Protection	The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Furnace Shell	High-quality cold-rolled steel plate with CNC machine tool processing, then it will have the process of welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder
Quality Certificate	ISO9001 CE SGS TUV
Standard Device	1,Furnace Main Body : 1 set 2,Temperature Controller : 1 pc 3,Power Line : 3 meters 4,Thermcouple : 1 pc 5,Operation manual ; 1 pc 6 Crucible Tong ; 1 pc 7,High Temperature Gloves : 1 pair
Optional Accessories	1 .Optional with Rotary Vacuum Pump (Vacuum Degree Level ≤500pa) 2.Optional digital vacuum gauge (1.0×105-1.0×10-1pa) 3.Optional with gas float meter (Float flow rage 1-10L/min)

Detail Pictures
Standard package list

Item Description	Quantity	Reference Image
VACUUM furnace	1 set
Thermocouple B type	1 pc
Three-meter power line	1 set
Crucible tongs	1 pair
Thermal Resistance gloves	1 pair
An English instruction book	1 pc

Packaging & Shipping
1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
Delivery Time: 30 working days against receiving advanced payment
Port: Shanghai/Qingdao
Company Information Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan, China Free Trade Zone. SANTE products cover 1000ºC~1800ºC Muffle furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000ºC Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on
Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment lab furnaces and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!
FAQ
1: Are you a factory?
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
Firstly, we are ISO9001:2008 and CE certified factory, all the processes are strictly following the standard of the metallurgy process; secondly. We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year(expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.
Contact Us
Marketing Manager: Caleb Li
Add: No.4, Sunxin Road, Luoyang Free Trade Zone, Henan, China

---
