Product Description
Product Description

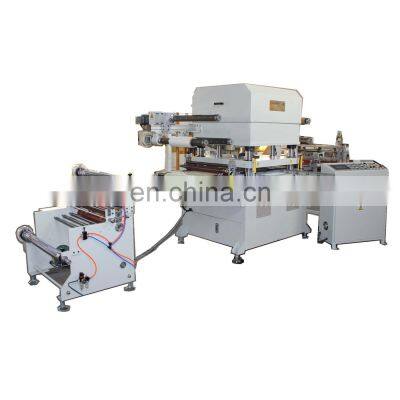

Model o DP-650 automatic hydraulic press die cutting machine for automotive parts I , unwinding part ---------------max width 650mm 1, First unwind : 3 inch air-shaft , AC Motor , frequency control second unwind ,3 inch air-shaft , magnetic powder brake 2, unwinding effective width : 650mm , max diameter is 24 inch ( 609mm), bear weight at 136KG 3, touch dancer sensor for first guiding roller 4, Servo motor control the 2 pulling roller , pulling roller is rubber material and hardness must at 75--80 degree , opening height is adjustable at least 24mm II , Main Machine ------------ Die cutting area 650*600mm1, Four shaft hydraulic machine 2, max cutting force : 40 Ton 3, shock proof 4, with light for the die cutting part so that easy installing mould and watch the die cutting part 5, plane die cutting area 650mm length , 600mm width 6, Safety Light Curtains at four corner .III, electronic PLC control 1, LCD touch screen , computer control base 2, with password for data protection 3, can save the datas that setted 4, low maintainance5, all the parts are under CE safety standard , electronic parts have CE mark 6, all the cutting / unwinding length and number are can set in the touch screen 7, cutting depth precision control at 0.025mm 8, stroke is controlled in 50--101.6mmModeloDP-650DP-650DP-650´rea de trabajo.650mm * 600mm850mm * 600mm1000mm * 800mmMax Tonelaje40t40t80tMax Ancho de alimentación650mm850mm1000mmDrive Motor7.5HP/5.5KW10HP/7.5KW15HP/11..2KWPESO:3 Ton3.4Ton4.5tonDimensiones1940mm * 1500mm * 1790mm2140mm * 1500mm * 1790mm2290mm * 1500mm * 1790mmPrecisión de la posición± 0,01 mm± 0,01 mm± 0,01 mmPOWER:380V 50Hz380V 50Hz380V 50HzThis machine is suitable for forming knife molds for small non-metallic materials (films, liquid crystal sheets, cold light sheets, touch panels, flexible printed circuit boards, insulating sheets, labels, electronic foam, medical rubber, packaging materials, plastic films) , PVC, etc.) to achieve semi-cutting or full-cutting continuous blanking operations for mass production.1. It adopts man-machine interface (computer screen touch), programmable PLC program control, and the operation is fast and easy.2. Adopting precision servo automatic feeding transmission device, feeding positioning is accurate, and feeding is convenient, which greatly saves raw materials and improves production efficiency.3. Adopt hydraulic die-cutting device, double oil cylinder and precise four-column automatic balance connecting rod structure to achieve precise die-cutting and stable operation.
>>
