TX455-14-2 14W LED Light Tube For Electrical Cabinet

Product Description

Description of the cabinet LED Light:
This item is manufactured with premium material for durable and long-lasting use. It's easy to use and install with long service life. Lamp for electrical rittal cabinet,switchgear lamp, switchboards lamp.
Main technical parameters:

Model No.	TX425-10-1	TX455-14-1	TX650-8-1	TX455-14-2	TX685-18-2
Rated Voltage	230V 50Hz	230V 50Hz	230V 50Hz	230V 50Hz	230V 50Hz
Tube	10W fluorescent Tube	14W fluorescent Tube	18W fluorescent Tube	14W LED	18W LED
Tube Type	T8	T8	T8	T8	T8
Light Intensity	720LM	720LM	720LM	>850LM	>850LM
Lifetime	8000h	8000h	8000h	50000h	50000h
Working Temperature	(-10°C~+45°C)		(-10°C~+45°C)	(-10°C~+45°C)	(-10°C~+45°C)
Illuminant Open	Manual, gate control	Manual, gate control	Manual, gate control	Manual, gate control	Manual, gate control
IP Grade	IP20	IP20	IP20	IP20	IP20
Protection Grade	I	I	I	I	I
Length	425mm	455mm	485mm	455mm	485mm
Width	48mm	48mm	48mm	48mm	48mm
Height	117mm	117mm	117mm	117mm	117mm

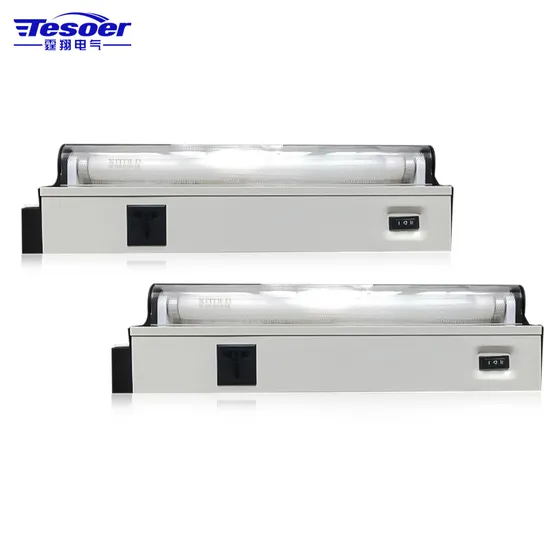

Cabinet LED Tube Light pictures:
Gate Control switch and power cable model options:
Drawing and Dimension:
Package: Standard carton packing. 50PCS/CTN
Widespread Applications:
Brief introduction of company:
Certificates Showing: FAQ
Q: What is your MOQ?
A: Generally, our MOQ is 200PCS for each model, we can discuss in details if you have special any requirements, like big quantity for the whole order but small quantity for each model.
Q:How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable after you place an order(q'ty>1000pcs) in the future.
Q:Can I add my logo on the carton and stickers?
A: Yes, we can do OEM service, but you need send your carton & sticker design to us.
Q:How long can I expect to get the sample?
A: After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 5-7days.
Q:What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 15 to 30 days.
Q: What is the shipping method?
A: Samples will be sent via DHL, UPS, FEDEX, TNT, EMS, etc. while bulk goods will be sent by sea or air. The goods on FOB basis can be shipped through designated forwarder.
Q:What is your term of payment?
A: By T/T, 30% at first, 70% before loading. Or irrevocable L/C at sight is accepted.
