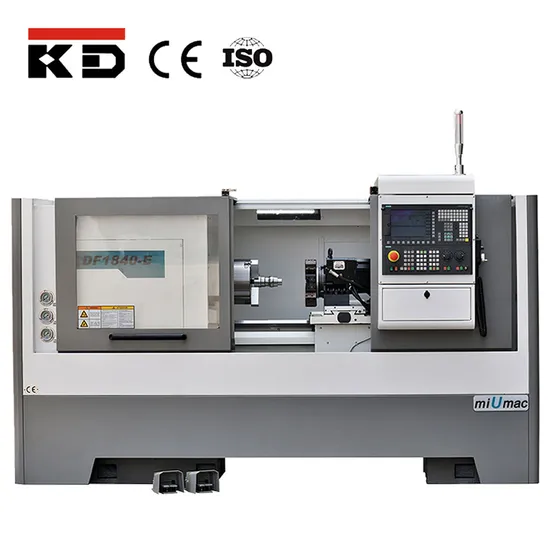

Df1860-E Automatic Metal Lathe Machine Flat Bed CNC Lathe

US$15,045.00-17,845.00 1 Set (MOQ)

Basic Info.

Model NO.
DF1860-F
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Swing
460mm
Max Swing Over Carriage
240mm
Max Workpiece Length
1500mm
Spindle Bore
80mm
Spindle Nose
D8
Spindle Speed
100-2000rpm
Tool Post
4-Way/6-Way/8-Way Tool Post
Main Motor
5.5kw or 7.5kw
Rapid Feed X/Z Axis
8/10 M/Min
Transport Package
Export Wooden Case
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100

Product Description

Df1860-E Automatic Metal Lathe Machine Flat Bed CNC Lathe
Product Description
MODELS
CK6140ZX
 CK6146ZX
 CK6150ZX
CAPACITY



Max.swing over bed
Ф400mm
 Ф460mm
 Ф500mm
Max.swing over carriage
Ф210mm
 Ф240mm
 Ф280mm
Max. length of workpiece
750/1000/1500mm
 750/1000/ 1500mm
 1000/ 1500mm
Max.turning length
600/850/1350mm
 600/850/1350mm
 850/1350mm
6-way turret Max.turning length
430mm
 430/680/ 1180mm
 680/ 1180mm
6-way turret Max.turning diameter
280mm
 340mm
 340mm
TRAVEL



Max.cross travel(X)
250mm
 280mm
 280mm
Max.longitudinal travel(Z)
710/960/1460mm
 710/ 960/ 1460mm
 960/ 1460mm
FEED



Rapid feed for axis X
8m/min
 8m/min
 8m/min
Rapid feed for axis Z
10m/min
 10m/min
 10m/min
SPINDLE



Spindle nose
D8
 D8
 D8
Spindle bore
Ф80mm
 Ф80mm
 Ф80mm
Taper bore of spindle
M.T.NO.7
 M.T.NO.7
 M.T.NO.7
Steps of spindle speed (manual)
Variable
 Variable
 Variable
Range of spindle speed
100~2000rpm
 100~2000rpm
 100~2000rpm
TOOL POST



Tool post stations
4-way, 6-way, 8-way

Tool cross section
25×25mm
 25×25mm
 25×25mm
TAILSTOCK



External diameter of tailstock sleeve
Ф75mm
 Ф75mm
 Ф75mm
Taper bore of tailstock sleeve
M.T.NO.4
 M.T.NO.5
 M.T.NO.5
Max travel of tailstock sleeve
130mm
 130mm
 130mm
OTHERS



Min. input
0.001mm
 0.001mm
 0.001mm
Main motor power
5.5kw (optional 7.5kw)
 5.5kw (optional 7.5kw)
 5.5kw (optional 7.5kw)
Coolant pump power
75w
 75w
 75w
Overall dimensions(L×W×H)
2060×1180×1500mm
 (2060/ 2310/ 2790)×1180×1500mm
 (2310/ 2790)×1180×1500mm
Net weight
2100kg
 2200, 2350, 2900kg
 2350, 2900kg
