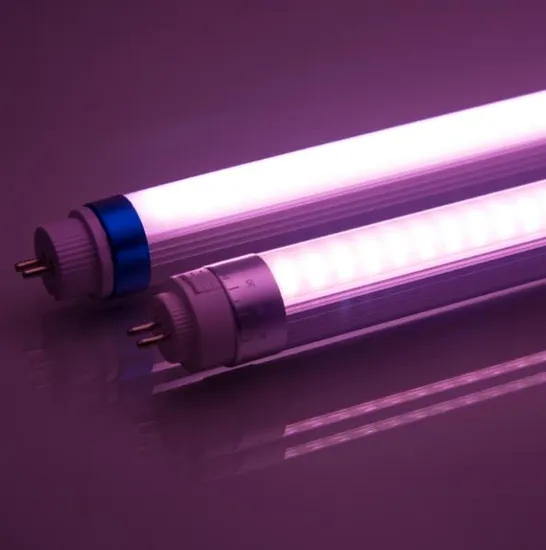

T8 9W 18W Indoor Lighting Glass Daylight Tube, Explosion-Proof Tube

Product Description

T8 waterproof lamp tube

1.General Information
Item Description	T8 waterproof lamp tube
Item Nr.	T8 9W led tubes 0.6m IP65
Product Type	Article LED hard light
Lifespan (@Tp=55°C)	50000Hs
Operation Temperature Range	-45°C to +50°C
Storage Temperature Range	-30°C to +45°C
Warranty	3 Years

3.Mechanical Properties
Product Size		Φ26*L1500(max)mm
LED Type		SMD2835
Length Incl. Tolerance	L	<=1500mm±2mm
diameter Incl. Tolerance	Φ	26±0.5mm
Product Weight Incl. Tolerance		0.16±0.02Kg/PCS(600MM)
Packing size		Φ36*L620MM(600MM)
Package Weight Incl. Tolerance		0.25±0.02Kg(600MM)
IP Rating		IP65
Housing Material		PC & aluminum
Housing Color		White & Milky white

4.Products picture and Drawing

L2:Total Length	600mm	1200mm	1500mm
L1:Total Length	581mm	1181mm	1481mm
Aluminium Length	565mm	1165mm	1465mm
PC Length	565mm	1165mm	1465mm
D:PCB Length	519mm	1119mm	1419mm
E:PCB Width	12.8mm	12.8mm	12.8mm
AC( Length)	1000mm
diameter	26mm

5.Electrical Properties
Total length	600MM	1200MM	1500MM
Number of leds/LED	48 LEDs	100 LEDs	132 LEDs
Electrical Operation	Alternating current (ac) / AC
Input Voltage(nom.)	AC85-265V
Rated power	9W	18W	22W
Power Consumption	9±0.5W	18±1W	22±1W
PF	>85%
Viewing angle	120 Deg
Dimmable	Yes
Energy Class	A+
Connector Type	AC line
Connector	Quick wiring terminal,customization

6.Optical Properties
Parameter		Parameter
Temperature		2700K-7000K,customization
Luminous Flux	600MM	800 LM±10%
	1200MM	1600LM±10%
	1500MM	1980LM±10%
Color Rendering Index (CRI)		Ra>=70
Uniformity of illumination		>0.8
optical Beam angle		120 Deg
LED BIN Code
risk categories according EN62471		Yes

7.Electrical Connection Diagram To allow for variance in the installation, it is not recommended to load the power driver beyond 80% of it is rated maximum power. If you wish to make any other configuration, please contact Armorn. Number of soft light strip connections diagram:
A single soft light strip connections diagram:
Q1: What is your minimum order quantity?
A:Usually MOQ is 50m, but we also accept small order for trail.
Q2:Is a free sample order available?
A: Of course, you can check our quality before ordering.If you have any requirements, please contact us.
Q3:How long of the lead time?
A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days.
Q4:Can LED strip be customized?
A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM.
Q5:What's your warranty?
A:We have 3 years and 5 years warranty
Q6:Do you supply sea shipment?
A: YES,We have our own shipping agency FOB Guangzhou,supply FCL&LCL.
Q7:Does your lighting equipment have CE or more certificates?
A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.
Q8:Is it possible to put our logo on your product or product packaging?
A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging,
The minimum order quantity depends on different ect. type of strip.

---
