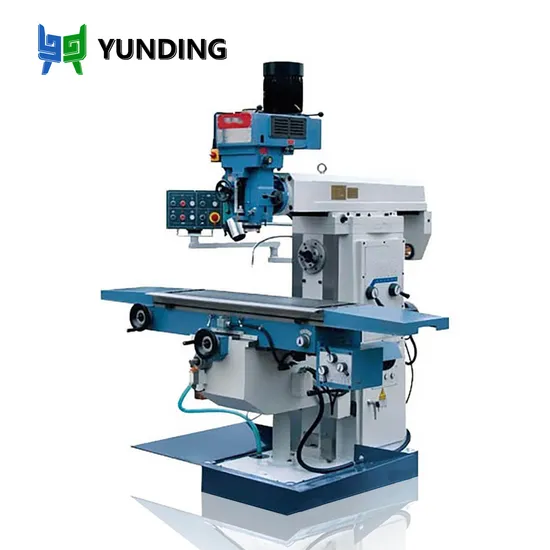

China Universal Milling Machine X6336 High Quality Horizontal Vertical Turret Milling Machine

Product Description

Product Description
China Universal Milling Machine X6336 High Quality Horizontal Vertical Turret Milling Machine
Product Parameters
Performance characteristics: 1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Main technical specifications	Specifications	Units	X6336
	Table size	mm	1500×360
	Table travel	mm	1000/320/450
	T slot(number-width-pitch)	mm	3-18-80
	Spindle taper		ISO40 7:24 (V)
			ISO50 7:24 (H)
	Spindle speed range	rpm	(V) 50HZ:65-4500 ,60HZ:80-5440,16 steps;
			(H) 60-1800,12 steps
			Optional:variable 65-4000
	Spindle travel	mm	127
	Spindle feed range	mm	0.04,0.08,0.15
			(3 steps)
	Distance between spindle nose and table surface	mm	140-590
	Distance between spindle axis and table surface	mm	0-450
	Main motor power	kw	3.7(V)4(H)
	Head rotation (left - right )	°	±90°
	Head rotation (front - rear)	°	±45°
	Weight	kg	2400
	Overall dimension	mm	2600×2200×2550

we are the most professional in making horizontal milling machine
Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
