Home Appliances Medical Equipments Traffic Tools Micro Switch

Product Description

Internal configuration drawing

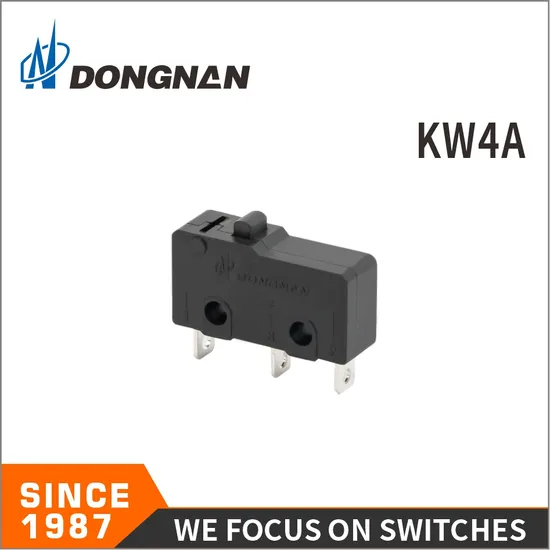

Sate, reliable miniature switch
Nice appearance,tight contiguration.Characteristic:small contact gap, quick action, high sensitivity and small operating travel.
Long life, high reliability
A variety of contact terminals
A variety of levers
Adopt thermosetting plastic or thermoplastic case
Widely used in home appliance, electronic equipment,automatic machine, communication equipment,
car electron,apparatus and instument, electric motion tool etc. Product show
Technical characterictics

Item	Value
Operating speed	0.1mm-1m/s(Related with actuator forms)
Operating frequency	Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance	≥100mΩ(500VDC)
Contact resistance	OF>0.5N:≤30mΩ(see note) OF≤0.5N : ≤50mΩ(see note)
(Test voltage) Between terminals of the same polarity	AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-current-carrying metal parts	AC1500V , 50/60Hz , 1min
Vibration resistance	10-55Hz , 1.5mm Double amplitude
Shock resistance	Destruction : OF>0.5N: 1000m/s2(approx.100G)max OF≤0.5N: 500m/s2(approx.50G)max Malfunction : OF>0.5N: 300m/s2(approx.30G)max OF≤0.5N: 200m/s2(approx.20G)max
Life	Mechanical ≥ 1,000,000 cycles Electrical≥10,000 cycles
Weight	Approx.1.6g(No lever)
Safety approvals	UL ,CUL ,VDE, TUV, ENEC, DEMKO, CE ,EK CQC

Company Profile
DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.
At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information
Exhibition
Certifications
FAQ
Q1.Compared with others, how is your price?
Our switch quality is guaranteed, the price is the factory price, no middlemen, good quality, good price.
Q2.How many square meters of your factory?
Our new factory is about 74,336 square meters
Q3.Does your product meet ROHS standards?
Yes, we meet ROHS standards
Q4.What Quality Assurance System does your factory pass?
GB/T19001-2008, ISO45001:2004, BSOHSAS18001:2007, QC080000 , IATF 16949
Q5.Do we have chance to be your dealer?
If your company can meet the conditions, we will evaluate and apply for you to be our dealer.

---
