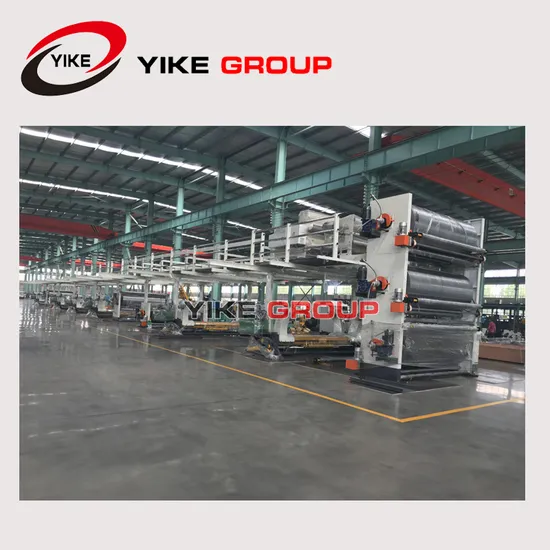

3 Ply Corrugated Cardboard Making Machine with 280s Single Facer

Product Description

3 Ply Corrugated Cardboard Making Machine with 280S single facer
RG-1-600 top(core)paper preheater
Structural features:
★In accordance with national standard category pressure vessel,and with the pressure vessel certificate.
★The roll surface after precision grinding, fine grinding and hard chromium plating processing,surface friction,durable.
★electric adjustable angle, angle can rotate in the range of 360°,and adjust the paper preheat area.
technical parameters:
1,diameter of the preheat roller:¢600mm
Diameter of the angle:¢85mm×2
2,work power:380V 50Hz
3,motor power:250W short(S2)work system
ZJ-F shaftless mill roll stand
Structural features:
★Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.
★manual dics brake,add screw following
★electric elements centralized control the electric elements,expand chuck
technical parameters:
1,Backstands action mode:mechanical electric operation
2,the range of paper jams:maximum:1600mm minimum:600mm
3,the diameter of paper jams:maximum:¢1400mm minimum:¢400mm
4,Unilateral maximum load:maximum2000Kg
regular technical parameters:
1,effective width:1600mm
2,operation direction:left or right(determined in accordance with customer plant)
3,design speed:100m/min
4,temperature range:200-260ºC
5,corrugated flute:(UV type or UVV type)
roller diameters parameters:
1,diameter of corrugated roller: ¢280mm
2,diameter of pressure roller: ¢284mm
3,diameter of glue roller: ¢216mm
4,diameter of preheat roller: ¢320mm
powered motor parameters:
1,main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
2,suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
SM-10 type double facer
Structural features:
★Heating plate surface by grinding treatment, hot plate width 600mm, a total of 12 heating plate and cooling 4 m.
Heating plate with a container board production, in line with national standards for a class pressure vessel, with pressure vessel certificate and inspection certificate.
★Hot plate with intensive gravitational roll structure. Roll adopt pneumatic lifting.
technical parameters:
1,temperature requirement:160-200ºC steam pressure:0.8-1.3MPa 2,air source pressure:0.6-0.9MPa
3,Cooling stereotypes length:4m Heating plate quantity:12 pieces
4,hydraulic system pressure:6---8MPa
roller diameter parameters:
1,upper drive rubber roller diameter:¢475mm lower drive rubber roller diameter : ¢350mm Wear rubber Outsourcing
2,Former follower with roller diameter:¢215mm back setting belt driven roller diameter:¢176mm
3,Platen roller: ¢70mm Setting roller diameter:¢86mm
4,upper belt tension roller diameter:¢155mm upper roll diameter with detuning:¢124mm
5, Entrusted with the roll diameter lower belt:¢130mm
Note: All the roller surface after grinding are hard chrome plated.

---
