Excellent Quality Asrs Shuttle System with 4 Direction Shuttle Vehicle for Cold Storage

US$25,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CALIN-4WS
Type
Shuttle Rack Structure
Material
Steel
Travelling Speed
1.0-1.2m/S
Maximum Load
1500kgs
Power Mode
Lithium Battery
Control Method
Siemens PLC
Transport Package
Packed in Wooden Case with Pallets
Specification
1200*1000 STANDARD or customized
Trademark
CALIN
Origin
Jiangsu
HS Code
73089000
Production Capacity
1000 Units Per Year

Product Description

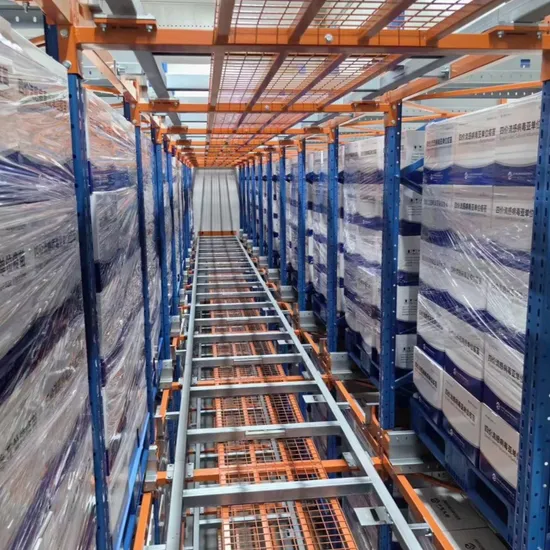

Four Way Smart Shuttle High Density Pallet Storage ASRS Shuttle Racking System
Four Way Smart Shuttle High Density Pallet Storage ASRS Shuttle Racking System is an upgraded version of an intelligent compact storage system for a stacker crane operated ASRS warehouse system. It is controlled by computer system, and the goods can be placed in the designated location by means of horizontal and vertical movement of a 4 way shuttle device. The elevator can move goods to higher level locations and change levels of 4 way-shuttle. The logistics docking between internal and external is carried out through a conveying system.
The four-way shuttle intelligent storage system is mainly composed of six parts:
--Shuttle rack structure,
--Four-way shuttle device,
--Vertical elevator,
--Conveyor system,
--Warehouse management system(WMS)
--Warehouse control system(WCS). As the core equipment of the intelligent high-dense storage system, the four-way shuttle is mainly composed of frame structure assembly, electrical control system, power supply system, driving system, lifting system, sensor system etc. It has two sets of driving system and two sets of lifting system. The driving systems are in charge of X and Y direction movements. One lifting system is in charge of the lifting of cargos, the other is in charge of the switch of main and secondary rails. Z direction movement can be realized by level changing through a customized elevator, which can realize the access of the three-dimensional space of the warehouse.
The four-way shuttle system is a solution that integrates the characteristics of high-density and multi-depth shuttle racks and intelligent storage of automated three-dimensional warehouses. The solution is more flexible, and the efficiency of inbound and outbound storage can be improved according to the development needs of users. It can be improved only by adding four-way shuttles and elevators. It can also provide a larger storage solution according to the complexity of the goods specifications to achieve the combination mode of single-deep , double-deep and multiple deep positions, real-time information, real-time monitoring, WCS dispatching shuttles operations, real-time monitoring of shuttles coordinate, speed, electric quantity and other conditions, so that your storage can be as you wish!
This system can realize the flexibility of storage and efficiency. The storage depth can be freely divided according to the needs, the storage efficiency can be changed by the number of equipment, and the amount of fixed equipment can also achieve flexible changes in efficiency with the change of scheduling. It greatly facilitates the flexible storage needs of different customers for warehousing models. Compared with other automated storage systems, this system also has the advantages of better security, lower comprehensive cost, larger storage capacity, and higher efficiency. Especially suitable for food, cold chain, medicine, chemical and other manufacturing or logistic industry.
