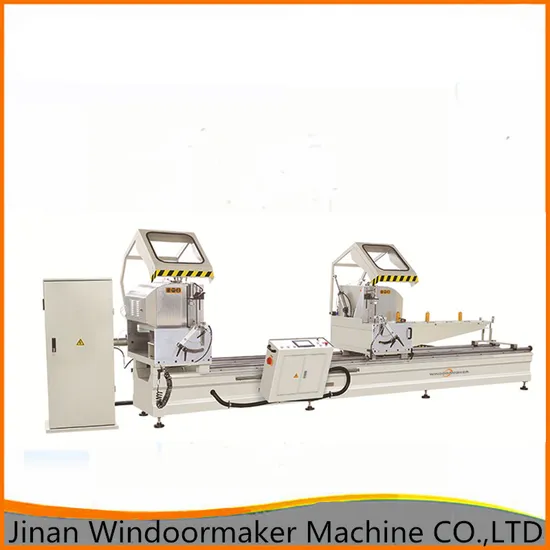

Aluminum Window Machine CNC Double Head Precision Mitre Saw /Aluminium Automatic Double Head Cutting Machine

Product Description

Product Description
Specification:
Used for Aluminum, PVC and Curtain-wall profile accurate and efficient CNC cutting. Accurate cutting ensure high accurate re-load position and convenient man operation work. Blade cutting take linear bearing system in moving, ensures the accurate cutting, and stable performance. Right head feeding adopts high ball screw-lead motion, with high accuracy and stability. Hydraulic cylinder ensured the stable speed adjusting and saw blade working. Cutting length is controlled by CNC control system to locate fast and precisely. Schneiderr CNC Control System for cutting Optimizing with screen output. Automatic angle cutting can be changed in 45° and 90°. Imported carbide saw blade for a high quality cutting and life. Safety system of shield can ensure the safe operation of man working. CNC system can store 10 set data.

Product Parameters
Technical Parameter:

Power supply	Made to order
Motor power	2*2.2KW+3KW
Motor rotary speed	2800r/min
Operation air pressure	0.5~0.8Mpa
Cutting length	400~4200mm
Air consumption	60L/min
Max. Cutting height	300mm×90°;200mm×45°
Cutting width	max 135mm
Cutting angle	90°,45°
Feeding speed	Stepless timing 0~3m/min
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	Ra12.5 μm
Saw blade specification	φ500mm×4.4mm×φ30mm Z=120
Dimension	5260×1750×1990mm
Weight	2000kg

Certifications
Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.

Machine at old customer
