Product Details
Product Description
Product Description
Industrial ice cream production line
Assorted Ice-Cream Processing Lines are products of a new generation which,by majorization,continuously accomplish mixing material,disinfection,even quality,cooling,aging,congealment,filling and hardening.
The production line can realize the changes of many varieties only by replacing its feeding head.It can produce cup ice cream, stick ice cream,chocolate-coated ice cream,kernel ice cream and ice sucker.
Description
Mixing tankUsed for quantitative water addition and batching.
Emusifying tankBlending milk powder, sugar.

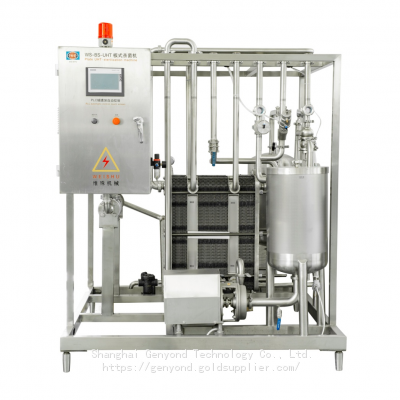

Plate pasteurizerSterilize liquid materials to ensure the quality of materials.
Aging tankMake free water in material fully become binding water, and prevent large ice crystal formation during freezing.
Freezing machinePut the prepared slurry in the freezing machine for freezing and stirring to make ice cream.
Ice cream filling machineShaping and filling of ice cream, choose colors, chocolate coating, add nuts.
-Formulation:
The ingredients used in ice cream production are: fat;milk solids-non-fat (MSNF);sugar/non-sugar sweetener;
emulsifiers/stabilisers;flavouring agents;colouring agents.
-Weighing, measuring and mixing:
Generally speaking, all dry ingredients are weighed, whereas liquid ingredients can be either weighed
or proportioned by volumetric meters.
-Homogenisation and pasteurisation:
The ice cream mix flows through a filter to a balance tank and is pumped from there to a plate heat exchanger
where it is preheated to 73 – 75deg for homogenisation at 140 – 200 bar, the mix is pasteurised at 83 – 85deg
for about 15 seconds then cooled down to 5deg and transferred to an ageing tank.
-Ageing:
The mix must be aged for at least 4 hours at a temperature between 2 to 5degc with continuous gentle agitation.
Ageing allows time for the stabiliser to take effect and the fat to crystallise.
-Continuous freezing:
•to whip a controlled amount of air into the mix;
•to freeze the water content in the mix to a large number of small ice crystals.
-Filling in cups, cones and containers;
-Extrusion of sticks and stickless products;
-Moulding of bars
-Wrapping and packaging
-Hardening and cold storage
Company Profile
Shanghai Genyond Technology Co., Ltd.
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
