Global Region Support GPS GLONASS BeiDou Galileo QZSS, GNSS Module L26 L26-T L26T

Product Description

Product Description

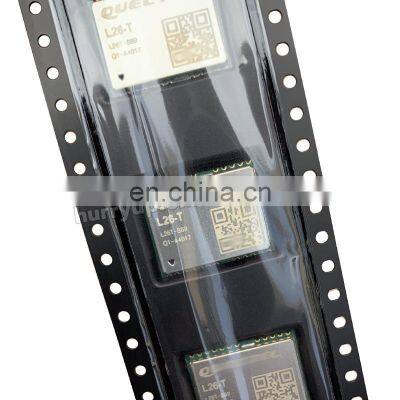

DescriptionGNSS L26-T● GNSS module● 16.0mm × 12.2mm × 2.3mm● 0.9g● GPS, GLONASS, BeiDou, Galileo, and QZSS● Operating temperature of -40°C to +85°CKey Features● Supports AGNSS● Built-in LNA● Timing function● Supports multi-GNSS raw data function● Supports DGPS (RTCM standard)/SBAS(WAAS/EGNOS/MSAS/GAGAN)Overview● The L26-T is an ultra-compact GNSS module measuring 16.0mm × 12.2mm × 2.3mm, designed and manufactured according to IATF 16969: 2016 specification, which is intended for high precision timing in demanding applications worldwide.● The module can connect concurrently to GPS, Galileo, GLONASS, BeiDou and SBAS, QZSS constellations for better accuracy and performance, and also supports output of multi-GNSS raw data. This guarantees accurate navigation even in environments such as urban canyons.● The built-in LNA ensures better performance under areas with weak signal, while the position hold mode reduces timing jitter and allows synchronization to be maintained with just one satellite in view. The module uses AGNSS aiding data to significantly reduce time-to-first-fix and ensure outstanding acquisition sensitivity even on first setup, when the precise location, time or frequency are still unknown.● The L26-T’s combination of compact design and very high precision makes it ideal for base stations as well as a range of industrial applications.Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
