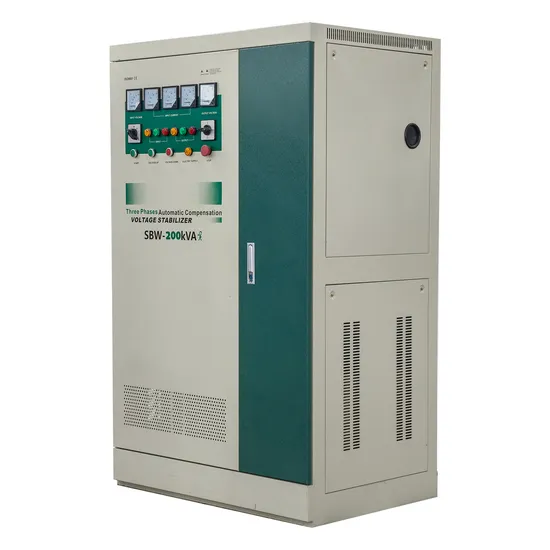

3 Phase 200kVA Compensating Industrial Voltage Stabilizer Regulator

Product Description

Product Description Introduction:
DBW/SBW series full automatic compensated regulator is designed and developed with the international advanced compensation technology. It can keep the output voltage in steady state automatically when the network voltage fluctuated or the load current varied, which can ensure the consumer run smoothly. It has the advantage of large capacity, high efficiency, no waveform distortion, simple operation and full-capacity output under tower input voltage if compared with other voltage stabilizer. The voltage regulator provided with over-voltage, over-current, phase sequence etc protection function
Features of SBW Automatic Voltage Regulator (AVR)
1. The AC voltage regulator is equipped with bypass system
2. Compensated voltage technology is adopted
3. Wide input voltage range
4. Over voltage protection
5. The voltage regulator has output voltage three phase auto-balance function
6. SBW voltage regulators are widely used in electric power supply systems.
7. Protection Under/Over voltage, over load, over current, short circuit, manual bypass, surge arrester (optional), voltage stabilization before power output;(can customeried)

Product	Technology	SBW
Power (VA)
Input	Phase	Three phase
	INPUT VOLTAGE	304-456V
	contor system	Unite control / independented control
	Frequency	50/60Hz
Output	Voltage	380V +/-3%
	Power factor	the power 90% when input voltage 380V
control		Servo motor
Protection	Higher voltage	when output voltage 246+/-4V , the protection will work
	Lower voltage	when output voltage 186+/-4V , the protection will work
	Short circuit	YES
	Over loading	YES
	Bypass function	Manual Switching
		Protection Under/Over voltage, over load, over current, short circuit, manual bypass, surge arrester (optional), voltage stabilization before power output;
Efficiency	AC-AC	0.96
Acoustic	Noise level	≤50dB
Environment	Temperature	-5-60 DegreeC
	Humidity	20% to 90%

1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
3. Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need, and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 35-45days."
4. Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide samples for test or quality checking.But you have to pay for the sample and shipping cost.
5. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union LC and Paypal. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."
6. Q : What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days. If without stock,or stock is not enough, we will check the delivery time with you."
7. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.
8.Q: Where is your market?A. Our products are popular export to Africa, South Asia, Middle East and so on. Surely we hope you can join us and make mutual benefits from our cooperation.
9.Q: What's the loading port?A. Usually we prefer Ningbo port (Zhejiang) for delivery, others like Shanghai port is ok.
10.Q: Could you offer Form A or C/O?A . Absolutely it is not a problem.
11.Q: How long is the warranty time?A . 12months from you receive the goods.
12.Q: What kind of certificate do you have?A. We have CE, ISO9001, SONCAP and testing report for all our products.
13.Q: What's the payment terms?A. We accept T/T, 30% deposit and 70% balance before shipment.
14.Q: Would you accept to use our logo?A. Quantity is over 500pcs/capacity, it is absolutely no problem to do OEM.
15.Q: We want to know about production capacity.A. Our average capacity is 50000 pcs per month.
16.Q: What kind of material of transformer?
A. We have two types, one is 100% aluminum EI transformer, other one is 100% aluminum toroidal transformer. It depends on your requirements. In fact, those two have no difference for usage. "Any requirements or question,welcome to ""Send"" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon."

---
