Product Details
Product Description
Product Description

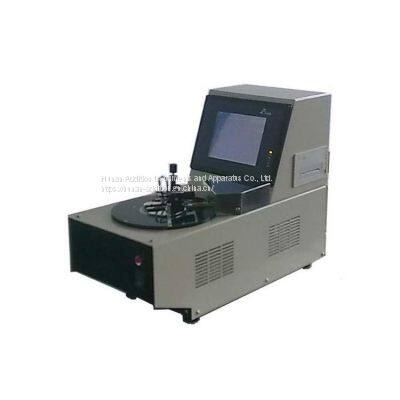

Automatic Closed-Mouth Flash Point Tester
(Rapid Equilibrium Closed Cup Method)
Product model: JF5208
Product Introduction
This instrument uses the Rapid equilibrium closed cup method to test the flash point properties of liquid samples. The instrument has the advantages of less sampling volume and high degree of automation. There are many test items, which can be used for coatings, paints (water-based paints), varnishes, lacquers, adhesives, solvents, fatty acid methyl esters (FAME), chemical reagents, flavors, fragrances, solid chemical products, and viscous chemical products. , aviation fuel oil, petroleum and related products to quickly test the actual flash point of samples. It is widely used in petroleum, chemical, paint, paint, plastic, and railway, aviation, electric power, commodity inspection, military and scientific research units for the rapid test of closed-port flash point of petroleum products.
Technical Parameter
1. Applicable standard: ISO 3679 GB/T5208 GB/T7634
2. Test range: low temperature type: -5℃～110℃, built-in semiconductor refrigeration; high temperature type: room temperature～300℃
3. Sample volume: low temperature type: 2ml/experiment; high temperature type: 4ml/experiment
4. Display mode: full-color touch-type LCD large-screen display
5. Detection method: automatic ignition method, measured by high-sensitivity thermocouple detection method
6. Temperature control accuracy: ±0.5℃
7. Display content:
①Control temperature and expected flash point set temperature.
②Fault prompt screen.
③The model parameters and air pressure settings.
④Experimental results
8. Power of the whole machine: 1.6KW
9. Working power supply: AC220V 50HZ
10. Instrument size: 280*380*350mm
11. Weight: 15kg
Main Feature
1. Carry out the flash point detection test in strict accordance with the operating procedures of "balanced closed cup method", and detect the flash point value of the sample. Users can choose the built-in test program or set the test parameters by themselves, or modify the preset program to realize custom non-standard tests. Various parameters can be set by the user, such as heating mode, time, temperature and average heating rate. The action of scribing, the lowering of the ignition head, and the detection of the flash point are all done automatically. (Different standards have different requirements for temperature rise control and ignition detection mode)
2. High degree of automation: set the flash point parameters according to the prompt operation mode on the LCD screen, press the START button, and the whole test process will be carried out automatically.
3. The large-screen full-touch LCD screen can be operated intuitively and display the whole process of the flash point test. The interface is simple, you can directly click to set the experimental mode, which is convenient and reliable, and the test process and measurement data are clear at a glance.
4. The instrument is compact, small and beautiful in appearance. The main electrical components of the control department and the measuring department are imported components, which ensures the reliability and stability of the instrument.
5. Optional low-temperature closed-cup flash point tester with built-in refrigeration module, no need for an external refrigerator. Test range: - 5℃-110℃.
6. The instrument has self-fault diagnosis and alarm functions.
7. The instrument is equipped with a standard RS-232C communication interface, which can be networked with the central control computer, which is convenient for networked quality management.
8. Automatic atmospheric pressure correction calculation, WYSIWYG experimental results. The instrument is equipped with a standard needle-type printer, which can list the test results one by one.
>>
