US$30.00-80.00
|
1 Piece
(MOQ)
|
Basic Info.
Compound Material
Steel Chrome Composize Pipe
Installation and Connection
Automatic Welding
Aluminium Plastic Compound Pipe Use
Water Heater Tube
Wall Thinkness(Shell+Inner)
3.0+5.1mm
Length(in/mm)
118.12/3000 or Customized
Hardened Process
UHF Quenching (400kHz)
Theoretical Weight(Lbs/Kg)
101/46
Flange Tape
Sk148 HD157 Zx175 FM175
Weld Tensile Strength
>480bar
Color
Red Black White or Customized
Surface Coating
Baking Paint
Transport Package
Standard Export Package
Production Capacity
500PCS/Per Day
Product Description

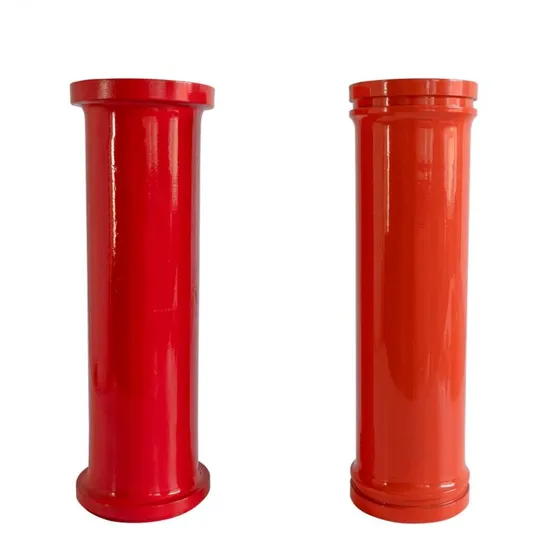

Product description High quality twin wall concrete pump pipes
| TWIN WALL DECK PIPE DN125 8.1mm (5.1m + 3.0mm) | with 148mm chrome alloy liner weld ends |
| Part Number | Length
(in/mm) | Theoretical weight
(lbs./kg.) | Hardened
Process | Hardness
HRC | Length
Deviation | Test
Pressure | Weld
Tensile
Strength | Surface
Coating |
| TW810W50L1M | 39.37/1000 | 57/26 | UHF Quenching
(400KHz) | UP to 68 | ±1mm | 280bar | >480bar | Baking paint |
| TW810W50L2M | 78.75/2000 | 117/53 | UHF Quenching
(400KHz) | UP to 68 | ±1mm | 280bar | >480bar | Baking paint |
| TW810W50L3M | 118.12/3000 | 172/78 | UHF Quenching
(400KHz) | UP to 68 | ±1mm | 280bar | >480bar | Baking paint |
| TW810W50L4M | 157.48/4000 | 230/104 | UHF Quenching
(400KHz) | UP to 68 | ±1mm | 280bar | >480bar | Baking paint |
| TW810W50L6M | 236.22/6000 | 344/156 | UHF Quenching
(400KHz) | UP to 68 | ±1mm | 280bar | - | Primer |
| Any length can be customized,please consult us. | |
1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.
2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.
3.The HRC of it's inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.
4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.
5.OEM available from us.
Production display
Product process
Product test
Packaging&Shipping
