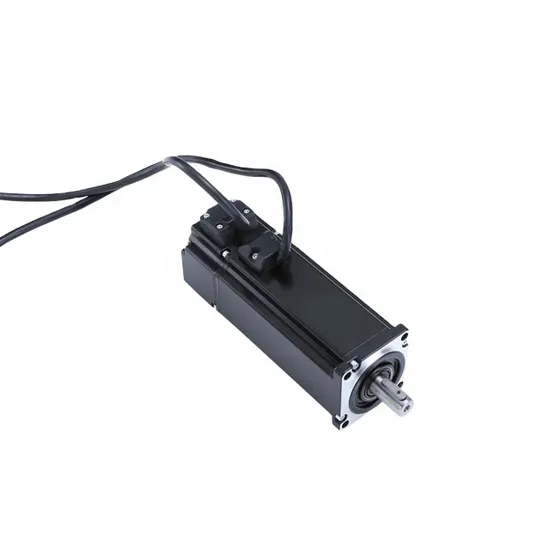

60mm Frame 400W AC 220V Servo Motor

Product Description

60mm frame 400w AC 220V servo motor has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.
Product Description

Motor model	60AST-M01330
Rated power(W)	400
Rated voltage(V)	220
Rated current(A)	2.8
Rated speed(rpm)	3000
Holding torque(N.m)	1.27
Peak torque(N.m)	3.9
Voltage constant(V/1000r/min)	29.6
Torque coefficient(N.m/A)	0.45
Rotor inertia(Kg.m²)	0.29*10-4
Line-line Resistance(Ω)	2.35
Line-line Inductance(mH)	14.5
Mechanical time-constant(Ms)	6.17
Weight(Kg)	1.63
Encoder line number(PPR)	2500
Insulation class	Class B
Safety class	IP65
The operating of Environmental conditions	Temperature:-20°C~+40°C Humidity: Below 90%RH No dewing

Company Information

Hangzhou Mige Electric Co., Ltd. is a professional manufacturer of high technology. We are engaged in the R&D, production and sales of hybrid stepping motors, permanent magnet ac servo motors and other related products.
Our main products are two and three phase composite stepping motors, drivers, and exchange servo motors. Products are complete in specifications, with powerful and dependable performance and good price. Our products are in a higher position in the field.
Our composite stepping motors, optimizing structure design with excellent synthesized function. Our high speed torques set has good dynamic state, stable working condition in low velocity. Our products have been widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.

---
