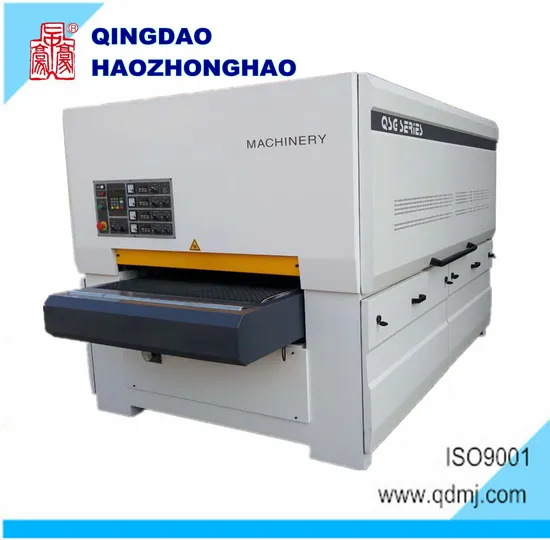

Woodworking Machinery Wood Door Furniture Cabinet Polish Machine

Product Description

Model	QSG630R6	QSG1000R6	QSG1300R6
Working Width	630mm	1000mm	1300mm
Working Thickness	5-110mm	5-110mm	5-110mm
Min working length	400mm	400mm	400mm
Brush roller speed	3-15.6m/s	3-15.6m/s	3-15.6m/s
Brush disc diameter	φ185mm*6	φ240mm*8	φ240mm*10
Brush roller diameter	φ300mm*2	φ300mm*2	φ300mm*2
Feeding speed	2.5-12.5m/min	2.5-12.5m/min	2.5-12.5m/min
Cross brush board	1.1kw*2	1.1kw*2	2.2KW*2
Brush disc power	1.1kw*2	1.1kw*2	1.5KW*2
Brush roller power	2.2kw*2	2.2kw*2	4KW*2
Feeding power	1.5kw	1.5kw	2.2KW
Total power	11.21kw	11.21kw	19.6kw
Oscillating scope	15/30/50mm	15/30/50mm	15/30/50mm
Working air pressure	≥0.5Mpa	≥0.5Mpa	≥0.5Mpa
Size	3100*1580*1850mm	3100*1930*1850mm	3100*2350*1850mm
Weight	1700kg	2200kg	3000kg

Functions:
1 For finish sanding of louver, shutter, raised panel, doors and frames,
2 For sanding finishing of hard wood, softwood, MDF, veneer, plywood
3 Removable shafts for polishing roller change
4 Inverts control spindle speed
5 Conveyor belt speedless
6 The polishing spindle moves back and front. It can improve the sanding quality more efficiency
7 This machine is a patent product, it can improve the curve surface polishing rate.
Packaging & Shipping
Package: Plywood case package.
Delivery: About 30 days after receive the down payment
Company Information Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.

With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.

Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.
FAQ What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.

What is the working table length of panel saw?
Usually is 160-3800mm. Also It is changeable according to clients requests.

Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port

How to contact us?


web: sandingmachine.en.made-in-china.com

---
