Agricultural Bondioli Type Blade Disc Power Harrow Rakes Shift Gear Cultivator Rotary Tiller Gearbox

US$200.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.

KLF-DX300

Application Field

Agriculture, Livestock, Aquaculture, Forestry

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Soil Preparation Machinery, Continuous Running Operation

Traction Type

Traction

Drive Type

Gear Drive

Arbor Configuration

Horizontal Axis

Certification

ISO

Color

Black

Warranty

OEM

Available

Ratio

2.07:1/2.57:1

Input

215HP

Input r.p.m

800/1000

Output r.p.m

386/389

Input N.M

1886/1509

Output N.M

3909/3879

158

Transport Package

Crate

Specification

Cast iron

Trademark

KADIVA

Origin

Zhejiang China

HS Code

8483409090

Production Capacity

50000PCS/Month

Product Description

Agricultural Bondioli Type Blade Disc Power Harrow Rakes Shift Gear Cultivator Rotary Tiller Gearbox Product Description

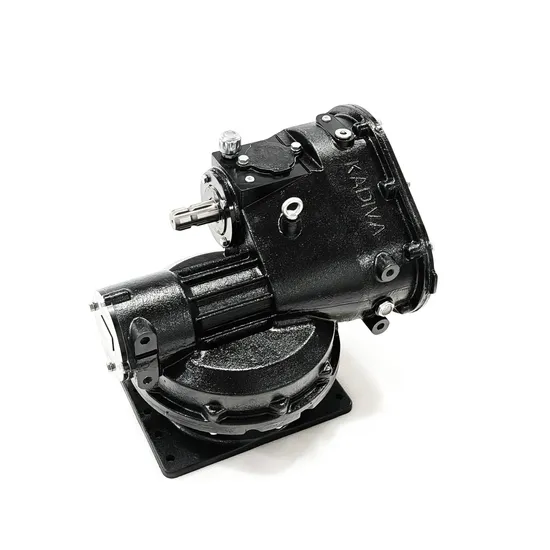

KLF-DX300 Power driven rake Gearbox
This product is used in the power-driven rake main transmission gearbox. It is derived from European and American design concepts. The main transmission box drives the transfer case gear and rotates the rake blade for operation. Power-driven rake uses vertical blade rotation to effectively protect the soil from nutrient loss. The design range of KLF-DX300 is 3 meters to 5 meters, and it adopts a fork-type shifting method. Suitable for tractors with different rotational speeds, shifting gears faster and more conveniently. Product Parameters
Detailed Photos
Click here for more products
Company Profile
Please contact us if you need more information
