Manufacturer Cheap Price 20000liters 10mt Auto Propane Gas Tank/LPG Storage Tank LPG Tanker for Gas Station

Product Description

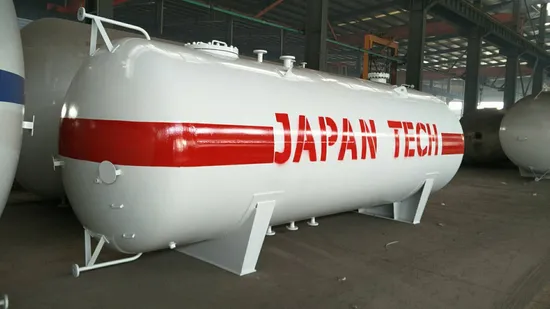

PRODUCT DISPLAY

Manufacturer Cheap Price 20000liters 10mt Auto Propane Gas Tank/LPG Storage Tank LPG Tanker for Gas Station
LPG Storage Tank Brief Introduction:
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc.in low pressure liquefied gases at room temperature; volume from 5 cubic meters --- 200 cubic meters optional. Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification,inspection , test .the tank materials on physical and chemical tests such as: mechanical properties and chemical composition. the tank welded joints, welding line , tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection. seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators. A, B Class 100% ray weld inspection, II level qualified C, D Class welds 100% magnetic particle inspection, I level qualified

Specification of 20cbm LPG Storage Tanker
Volume of Tank	20CBM
Filling Weight (kg)	7980
Tank Weight (kg)	5050
Thickness (mm)	Tanker body: 12
	End plate:12
Tank Diameter (mm)	2100
Tank Dimensions (mm) (length x width x height)	6154*2124*2714mm
Major Materials	Carbon Steel
Fluid Property	Flammable
Design Pressure(MPa)	1.77
test pressure (Mpa)	2.22
Density (kg/m3)	420 -590kg/cbm
Corrosion Allowance(mm)	1
Life expectation(year)	15
Safety Valve(As Customer's Requirement)
Quantity	1
Location	On the top of tanker
