All Over The World Power Pack Hydraulic Dock Leveler for Industrial Warehouse Use

Product Description

Product Description
Characteristics

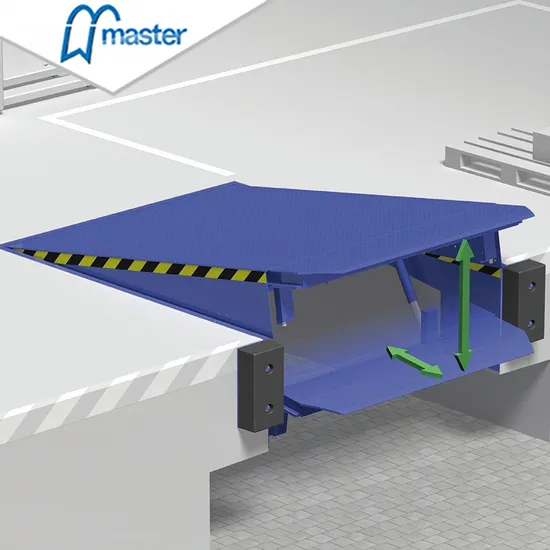

Master Well Dock Leveler uses a hydraulic power unit to lift the upper main panel of the dock leveler through main oil cylinder, and a small auxiliary oil cylinder pushes out the lip plate. It is very useful when dock height and truck height is different,and through the principle of the dock leveler's self-weight drop, the lip plate is lifted to the rear of the truck to complete the entire action. The hydraulic type of dock leveler is currently the most commonly used and also the most widely used loading and unloading platform, with stable performance, simple operation, stable operation, low maintenance rate and easy repair.

Material Description
Upper Plate	8 mm thickness,anti-skate steelplate
Swinging Lip	single 16 mm thickness,400mm length
Support Profile	C-shaped stiffener/14#I Beam
Sealing Element	Japan Brand NOK A505
Working Range	+300mm/260~300mm
Adjustment Time	Rise Time≤16S,Fall time≤10S
Power	380V1220V
Electric Control Box	24V weak current control
DynamicLoading Capacity	6,000~25,000KG
StaticLoading Capacity	10,000~31,700KG
Anticollision Block	Laminated belt stamping combined
Service Life	≥200,000 times
Operating Temperature	-30ºC~+50ºC
Color	Blue/Grey/Black,could be customized
Noise	<50db(±5db)

Structural Drawing

1. Upper Plate	6. Power Pack
2. Lip Plate	7. Main Cylinder
3. Hinge (Open)	8. Auxiliary Cylinder
4. Rib Support	9. Frame
5. Support Structure	10. Guard

Spare Parts Details
Work Shop
Related Products
Exhibition

Company Profile
Relying on our excellent business performance and R&D, we are now growing up to about 100 people work team, including International Sales Department, Domestic Sales Department, Purchase Department, Financial Department, Human Resource Department and Research and Development. We are always ready to provide the professinal service for you. Certifications
FAQ
Q1: What is your MOQ?
A: No min order for dock leveler.
Q2: Can you do the full set products according to my project drawing?
A: Yes, our engineer will check your project drawings to make sure its accuracy for each different fittings and quantity.
Q3: What kinds of payment you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.
Q4: We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q5: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce Glass aluminum sectional Door,Industrial door, High speed door, Rolling shutter door, Dock leveler, Dock seal, Motor&Gate openers; We produce parts by ourselves in order to control quality and cost.

---
