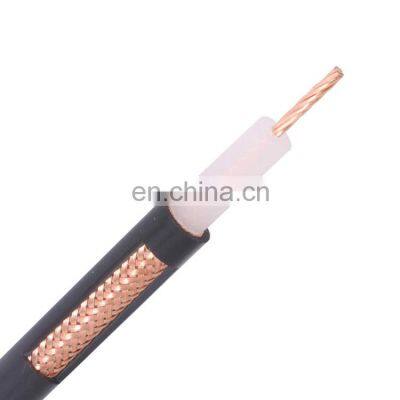

YUXUN Manufacturer Price 50ohm RG213 Coaxial CableProduct Description RG213/50 Ohm Coaxial Cable Specifications: Part No. RG213Inner ConductorBare CopperDiameter7/0.752±0.008mmInsulationSolid PEDiameter7.24± 0.2mmShield (Bare Copper)Diameter0.18mmNo of Wire Ends8cores/SpindleNo of Spindles24Pitch40mmJacket (PVC)Diameter10.30±0.25mm ColorBlackELECTRICAL CHARACTERISTICSImpedance (Ω)50 Ohm±2Nominal Capacity (PF/m)100Velocity Ratio (v/c)1.01Loop Resistance (Ω/km)<10.8Test Voltage (KV DC)2ATTENUATION at 20℃ (≤dB/100m)50MHz5.25 100MHz7.00 200MHz10.50 500MHz16.60 800MHz22.40 1000MHz25.30 1200MHz28.10 1500MHz31.72 1900MHz36.05 Mechanical CHARACTERISTICSWeight (kg/km)172Min. Bending Rad (mm)120Tempreature Rating (℃)-20….+70Company Information Production LineOur clientPackaging & Shipping Certifications FAQQ1:Are you a trading company or manufacture?A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last. Q2:What is your delivery time?A2:Normally,our delivery time is 15-20days after get your deposit. . Q3:What is your MOQ?A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually. Q4:What is your general payment term?A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery. Q5: Can you produce the specfic cable strictly according to clients' requirement?A5: Yes, we have professional technical team, so we can do ODM for customers. Q6: Where you are located?A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou. If you intersting in our cables, pls send the enquiry now!!!Free sample will be deliveried to your address soon!!Contact us
>>
