Hot Press Machine Wood Press Machine Veneer Hot Press

Product Description

120T 3Layers Hydraulic Hot Press Machine for Wooden Door Wood Furiture Product Description
Application:Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such aswooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.Features:1.PLC programmable control system so that it smooth,rapid closure,stable,effective and pre-loading2.Hot platen:It is drilled from excellent carbon solid steel and it is high precision, high strength and durable.3.It is manufactured on special worktable,so as to keep the hot platen easy to operate.The electric oil heater is environmental protection instead of using coal or wood as it's fuel.4.Hydraulic system:It is "Triple Filter"and it has excellent oil pump and electric motor.It uses right-angled one-way valve so that it can work smoothly.The pressure is adjustable.5.Control system:Microcomputer ,Manually/Automatic controlled. Advantage:1.It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.2.As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on.3.Cylinder:It is worked through excellent CNC precision machine tool.4.It uses high quality oil envelop so as to avoid of oil leaking.

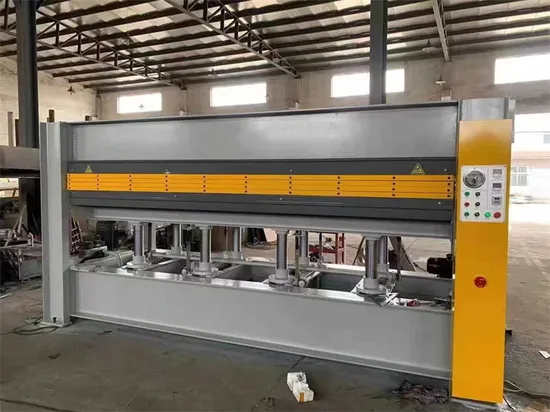

Detailed Photos
Product Parameters

DESCRIPTION	PARAMETERS
Press platen dimensions	1300x2500x42mm
Layers	3Layers
Number of hot platen	4pieces
Open distance of hot platen	80mm
Cylinder diameter	6x100mm
Cylinder stroke	300mm
Pump power	5.5KW
Heating power	42KW
Machine weight	7600Kgs
Dimension	3600x1670x1960mm

Company Profile
After Sales Service
1.Guarantee:The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.2.Technical support:Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.We provide English version manual and Operational video.Engineer available to service machinery overseas.3.After sales services:Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.

---
