Parcel Distribution Centers Baggage Transportation Manipulator Duct Vacuum Lifter for Box Handling

Product Description

Tube lifter manufacturer support OEM&ODM service
Our solutions can be optimized for different customer requirements and environments. With a series, with
columns of suckers and grips, Vaculex® can grasp, lift and carry almost anything, packages include: parcels
, luggage, sacks, bags, sheets, glass, casks, barrels, bottles, food, stones, the Windows, etc.

Model	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30	ETJSV100-30
Tube Length	2500mm-4000mm
Suction Capacity	30kg	40kg	50kg	60kg	80kg	100kg	120kg	180kg
Tube Dia.	100mm	120mm	140mm	160mm	180mm	200mm	230mm	250mm
Lifting Speed	1m/s	1m/s	1m/s	1m/s	1m/s	1m/s	1m/s	1m/s
Suction Dia.&Qty.	TBD
Vacuum Power	2200W	2200W	3000W	3000W	3000W	3000W	3000W	5500W
A-crane	3800mm-4150mm (to be customized)
B-Rocker Arm	3000mm-4000mm
C-Lifting Stroke	0 to 1250mm-0 to 2500mm (to be customized)
Rotation	230°	230°	230°	230°	230°	230°	230°	230°
Voltage	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ

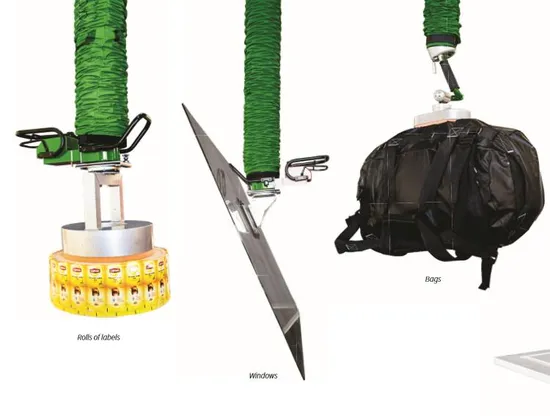

Almost everything can be lifted
With custom-made tools we can solve your specific needs. Please contact us for more information
Main Features
User friendly
A vacuum tube uses suction to both grip and lift the load in a single movement. The control handle is easy for the operator to use and feels almost weightless. With a bottom swivel, or an angle adaptor, the user can rotate or turn the lifted object as required
* Good ergonomics means good economics
Long lasting and safe, our solutions provide many benefits including reduced sick leave, lower staff turnover and better staff utilization - usually combined with higher productivity.
* Easy installation and maintenance
The power source can either be an electric pump or pneumatic vacuum pump. The system is normally installed on a jib or a lightweight bridge crane. The installation is simple and is adapted to your specific lifting needs. Our lifters are made of extremely hard-wearing parts which seldom require service and repair.
* Unique personal safety
Vaculex® is designed with several built-in safety features. For example, our non-return valve - a standard on all units - ensures that the load is not dropped if the vacuum suddenly stopped running. Instead, the load will be lowered to the ground in a controlled manner.
* Productivity
Vaculex® not only makes life easier for the user; several studies also show increased productivity. This is because the products are developed using the latest technology in cooperation with industry and end-users' demands.
* Application specific solutions
For maximum flexibility the tube lifters are based on a modular system. For instance, the lift tube can be changed depending on the lifting capacity required. It is also possible to have an extended handle fitted to the Vaculex® for applications where extra reach is required.
How to define a design concept?
10 Key Items to Check
1-Min & Max weight of loading
2-Min & Max dimensions
3-Min & Max lifting height
4-Porous or non-porous
5-Lifting cycles per hour
6-Average cycle time
7-Photos of object and work area 8-Work area coverage
9-Ceiling height
10-Lowest obstacle

FAQ

1.Are you a factory or trading company?

We are manufacturer of metal sheet lifters, glass lifters, crane lifters, auto feeding riveter, Spin Press Riveting Machines and welding machine.

2.How can I get the price?

-We usually quote within 24 hours after we get your inquiry. -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

3. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

4.What is your lead time?

-It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

5.What is your payment term?

-T/T, Western Union, MoneyGram, and Paypal. This is negotiable.

6.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders.

7.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ; -2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

---
