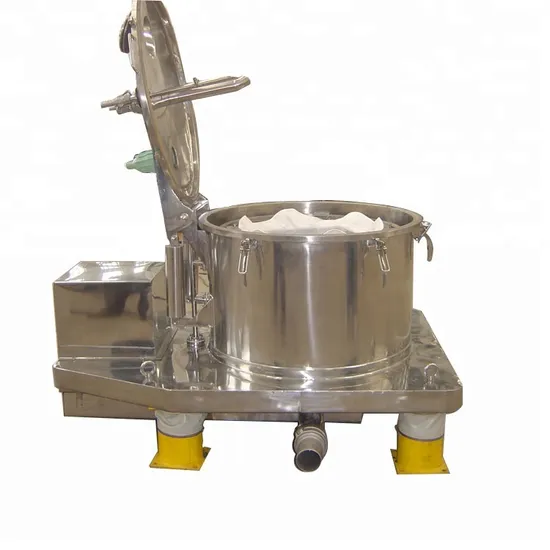

Model Pd Bag Lifting Discharge Food Grade Centrifuge Whey Machine

Product Description

Product features:
Start with frequency converter for stepless speed regulation, with a PLC (programmable logic controller) to start the steady expansion of the scope that can be used, with the main control cabinet and field proof auxiliary control panel can operate both to improve safety sex, no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolator types of damping system that allows devices to be completely absorbing vibrations generated by change. On the basis of the ground and the surrounding non-interference.
Shell structure for the flip, can be laminated on the centrifuge drum shell with space for thorough cleansing. Structural design is reasonable, more comprehensive cleaning and sterilization. Particularly difficult to adapt materials for the staff contact for high cleanliness, washing demanding proof high grade solid-liquid separation. Lift bag discharge, can be off-site discharge, improve efficiency, reduce labor intensity, environmental conditions fully comply with GMP standards.
main application:
Applies to both solid phase for the granular filtering, it can be used for dewatering fibrous material, particularly high viscosity, fine particle size, toxic and hazardous, flammable materials in the filter. For example: gypsum, thiamine, Glauber's salt, copper sulfate, nickel sulfate, a chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw materials, fertilizer, oil, all kinds of resin, salt, MSG, food additives, starch sugar, vitamins, antibiotics and other drugs, herbicides, insect repellents, copper, zinc, aluminum ore dehydration, metal refining, volleyball acid plaster, water treatment.

Working principle:

Frequency control by the main motor, a smooth start, through the narrow V belt antistatic flame retardant will force transmission to the bowl, so that high-speed rotating around its own axis, forming a centrifugal force field, the material from the upper part of the feeding tube into the bag with the basket from the will power to force material trapped in the bag, the shutdown, open the case and cover, hanging out outside the machine to discharge locations; with washing pipe materials can be washed.

Technical Parameters of Model PD Bag Lifting Discharge Food Grade Centrifuge Whey Machine

Model	Drum					Power (kw)	Weight (kg)	Overall size(L*W*H) (mm)
	Diameter (mm)	Volume (L)	Capacity (kg)	Speed (rpm)	G-force
PD800	800	115	155	1500	1008	7.5	1800	1800x1050x1140
PD1000	1000	170	230	1200	806	11	2800	2030x1300x1220
PD1200	1200	250	340	800	431	11	3200	2300x1500x1350
PD1250	1250	280	400	950	631	18.5	4200	2350x1550x1370
PD1500	1500	500	650	850	607	30	5200	2900x1900x1575
PD1500A	1800	600	800	700	494	37	7800	3200x2200x1675

Structure&Principle
Frequency control by the main motor, a smooth start, through the narrow V belt antistatic flame retardant will force transmission to the bowl, so that high-speed rotating around its own axis, forming a centrifugal force field, the material from the upper part of the feeding tube into the bag with the basket from the will power to force material trapped in the bag, the shutdown, open the case and cover, hanging out outside the machine to discharge discharge locations; with washing pipe materials can be washed.


FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
