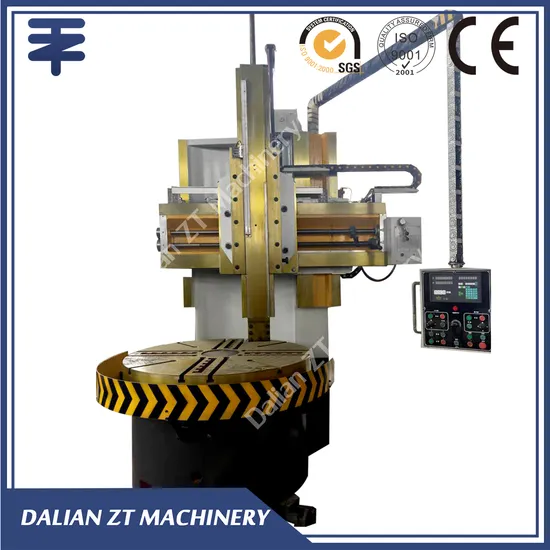

Single (Double) Column Vertical Lathe with Side Head DRO C5116 Turning Dia. 1600mm Lathe

Product Description

Workpiece: Valve, pump, auto parts; ring, flange, shell parts
Function: Turning, grooving, drilling, tapping, reaming

Main Technical Parameters:

Specification	Model Unit	C5116
Max turning diameter	mm	1600
Table diameter	mm	1400
Max height of workpiece	mm	1200
Max weight of the workpiece	t	5
Max torque of table	KN.m
Speed range of Table (16steps)	r/min	5-160
Main motor power	KW	22
Machine dimension	mm	2830x2670x3010
Machine weight	t	12

Standard Accessories:

Name	Q'ty
Chuck jaw	4 sets
Tool holder	1 pc
Tool shank	1 pc
Spanner for tool post	1 pc
Spanner for chuck	1 pc
Ring spanner 36	1 pc
Oil gun	1 pc
Anchor bolt	7 sets
Machine pad	8 pcs

PACKING, FIXING & DELIVERY:

CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
