Factory Direct Sales High Rigidity Structure Horizontal Machining Center Stable Milling CNC Milling Machine

Product Description

Company Profile
* * 24-hour online service at any time
* * 24-month warranty
* * Support ODM OEM
* * Provide free workpiece processing test
* * Provide a full range of solutions for machining projects
* * Pass strict quality control and multiple testing processes
* * Trade with customers in more than 150 countries around the world
* * Can complete customs clearance procedures in various countries and provide customs clearance information
Product Description
Customizable
Support global installation and service!!!
HMC1395

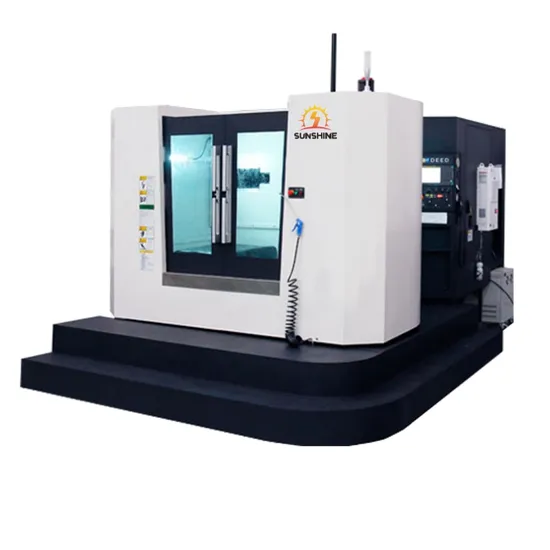

Factory direct sales high rigidity structure horizontal machining center stable milling CNC milling machine
Application areas of horizontal machining centers:
The application areas of horizontal machining centers are very wide, such as aerospace, medical equipment, energy, transportation, automobile manufacturing, mold manufacturing, heavy machinery manufacturing, new energy, and many other industries and fields.
Horizontal machining center flexible production line



Product Parameters

Models	HMC1075	HMC1290	HMC1395	HMC1814	Invert T500	Invert T630
Table size (mm)	1300X600	1360X700	1400X700	2000X900	500*500	630*630
Maximum allowable load (Kg)	800	1000	1000	1600	600	950
X-axis travel(mm)	1000	1200	1200	1800	600	1050
Y-axis travel (mm)	750	800	800	1280	360	750
Z-axis travel(mm)	800	700	750	900	450	900
T-slot	5-18-105	5-18-122	5-18-122	5-22-165	-	-
Distance from spindle end face to work table (mm)	115-915	180-880	168-918	200-1100	150-850	-
Distance from spindle center to Z-axis guide surface (mm)	110-860	140-940	260-1060	140-1420	130-650	130-1030
Spindle taper	BT50-150	BT50-190	BT50-190	BT50-190	BT40-150	BT50-190
Spindle speed(r/min)	6000	6000	6000	6000	8000	6000
X/Y/Z rapid movement (m/min)	20/12/20	20/12/20	20/12/20	18/12/18	20/12/20	20/12/20
Machine weight(Kg)	8000	10000	10000	15000	8000	10000

Detailed Photos
Workbench
The workbench of the horizontal machining center is placed horizontally, making the clamping of the workpiece more convenient and quick. This design is conducive to reducing clamping time, improving production efficiency, and also helping to improve the stability of the machining process. The workpiece is easier to maintain balance in a horizontal state, reducing machining errors caused by vibration and deformation. Because the workbench can rotate, the horizontal machining center can realize the machining of multiple surfaces of the workpiece, improving the flexibility and efficiency of machining.

Spindle
The rigidity of the spindle is crucial to machining accuracy. With strong rigidity and high torque, it can provide stable and high-speed rotation. This high-performance spindle is conducive to high-precision and high-efficiency machining. At the same time, it can quickly replace the tool according to different machining requirements, which improves the flexibility and efficiency of machining.

CNC system
It uses a rotating operation panel, which can be used for FANUC, SIEMENS, and HNC. The CNC system uses advanced control algorithms and sensor technology to achieve precise control of the movement of each axis of the machine tool. The operation interface is usually designed to be intuitive and friendly, allowing operators to easily get started and quickly master it. This easy-to-operate feature reduces the requirements for operator skills and increases the popularity and utilization of machine tools.

Tool magazine

The disc-type tool magazine can rotate without noise and change tools quickly and accurately. It can accommodate various types of tools, such as milling cutters, drills, boring tools, etc., to meet different processing needs. This diverse tool storage capacity enables the horizontal machining center to flexibly respond to various processing tasks.

Electrical cabinet

The internal layout of the electrical cabinet is reasonable, and it uses high-quality electrical components and heat dissipation design to ensure that the CNC system maintains stability and reliability during long-term operation. This stability is essential to improving machining accuracy and extending the service life of machine tools.

Packaging & Shipping
FAQ
Q1: Can it be installed and debugged overseas?
A: Yes, we will arrive at the customer's site as soon as possible to install and debug.
Q2: Which countries have your equipment been exported to?
A: Our products are exported to many countries and regions including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa, etc.
Q3: Are you a manufactuer or trading company?
A: We are manufacturers.
Q4: Are you in stock?
A: It is in stock, depending on which model of equipment you choose.
Q5: Can it be customized for us upon request?
A: Yes, we have a professional technical team to meet your needs.
Q6: What about the lead time for mass production?
A: The time will be determined according to the quantity of the specific ordered products.
Q7: How long will it take to ship?
A: About 30-60 days, the specific time is subject to the actual situation.
Q8: Packaging & Shipping:
A: Packed in wooden cases and transported by shipping.
Q9: What field is the product used in?
A: The company's products are widely used in processing fields such as automobiles, aerospace, molds, and machinery manufacturing.
Q10: About the price?
A: All products are sold directly by the manufacturer. They are produced in our own factory, eliminating the middlemen and are delivered directly to customers. The quality is guaranteed and the specific price is subject to the actual quotation.

---
