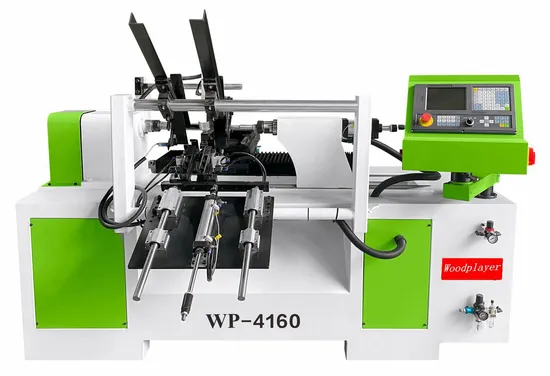

Wpl4146 Special CNC Wood Turning Lathe and Automatic C Router Engraving Lathe Machine

Product Description

Features:
Fully automatic multi-function integrated CNC woodworking lathe,
fully automatic loading and unloading, with milling, cutting, drilling and other functions;
The whole machine adopts high-quality electric control system, PLC program control,
high-precision spindle and high-quality bearing.
Major Technical Specifications:
Max. Processing length: 500mm
Machinable diameter: 10-120mm
Length of machined parts: 20-500mm
Tool rest travel: 300mm
Tailstock stroke: 75mm
Power of oil pump: 25W
Spindle motor power: 4KW
Spindle motor Speed: 5500rpm
Working air pressure: 0.6-0.8Mpa
Working voltage: 380V/50HZ 3P
Overall dimensions: 2100*2200*1700mm
Net weight: 1400Kg

Max. Processing length	500mm	Spindle motor power	4KW
Machinable diameter	10-120mm	Spindle motor Speed	5500rpm
Length of machined parts	20-500mm	Working air pressure	0.6-0.8Mpa
Tool rest travel	300mm	Working voltage	380V/50HZ 3P
Tailstock stroke	75mm	Overall dimensions	2100*2200*1700mm
Power of oil pump	25W	Net weight	1400Kg

Guangzhou Yamu Paile Industry & Trade Co., Ltd. (WOODPLAYER)

Specializes in manufacturing woodworking machine, include bandsaw machine, table saw machine, wood milling machine, wood lathe, wood sander machine, CNC router and wood dust collector. also we supply all kinds of these machine's parts, and relative product, crafts etc.
Our factory is devoted to the research and development of woodworking machine. "woodplayer" branded woodworking machine have obtained remarkable achievements in the design of precise carving machine technologies.
Our machines are sold in many European and American countries. These products are very popular in these markets and have established a leading position in the woodworking machine market.
After several years of rapid development, our woodworking machines have already covered advertisement in decoration, woodworking, cabinet furniture crafts wood toys fields. Our machine well meet the demands of customers in different countries and regions.
We keep trying our best to produce innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please no hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
