Good Price Conveyor Carbon Steel Shaft Roller with Best Price

Product Description

Company Profile Established in 2009, Zhuji Hengchuan Trading Co., Ltd is a professional supplier for conveyor parts, located in Zhejiang province. We focus on supplying a variety of conveyor parts, including conveyor tubes, conveyor frames, conveyor rollers, bearing housings and so forth.
With our professional technology R&D team, and experienced quality control department, our products have been awarded the ISO9001 Quality Management System Standard and our main markets are in America, Europe, Asia and Australia.

Factory advantage	Professional and experienced technology team
	All products inspected before shipping with reasonable prices
	Low MOQ and free sample
	We are audited by SGS and passed the ISO9001:2008 certification
Industries service	Industrial machine
	Electronic and communication
	Oil, gas,mining and petroleum
	Construction industry
Equipment	CNC Machining Center, CNC Lathes, CNC Milling Machines, Punching and drilling machines, Stamping machines
Precision Processing	CNC machining, CNC turning and milling, laser cutting, drilling, grinding, bending, stamping, welding

Roller size

No.	Standard Diameter		Length Range (mm)	Bearing Type Min-Max	Shell Thickness of Roller
	mm	Inch
1	63.5	2 1/2	150-3500	203 204	3.0mm-4.0mm
2	76	3	150-3500	204	3.0mm-4.5mm
3	89	3 1/3	150-3500	204 205	3.0mm-4.5mm
4	102	4	150-3500	204 205 206 305	3.2mm-4.5mm
5	108	4 1/4	150-3500	204 205 206 305 306	3.5mm-4.5mm
6	114	4 1/2	150-3500	204 205 206 305 306	3.5mm-4.5mm
7	127	5	150-3500	204 205 206 305 306	3.5mm-5.0mm
8	133	5 1/4	150-3500	204 205 206 207 305 306	3.5mm-5.0mm
9	140	5 1/2	150-3500	205 206 207 305 306 307	3.5mm-5.0mm
10	152	6	150-3500	205 206 207 305 306 307 308	4.0mm-5.0mm
11	159	6 1/4	150-3500	205 206 207 305 306 307 308	4.0mm-5.0mm
12	165	6 1/2	150-3500	206 207 305 306 307 308	4.5mm-6.0mm
13	177.8	7	150-3500	207 306 307 308 309	4.5mm-6.0mm
14	190.7	7 1/2	150-3500	207 306 307 308 309 310	4.5mm-7.0mm
15	194	7 5/8	150-3500	207 306 307 308 309 310	4.5mm-8.0mm
16	219	8 5/8	150-3500	308 309 310 312	4.5mm-8.0mm

Advantage:
1.The life time: More than 50000 hours
2. TIR (Total Indicator Runout)
0.5mm (0.0197") for Roll Length 0-600mm
0.8mm (0.0315") for Roll Length 601-1350mm
1.0mm (0.0394") for Roll Length over 1350mm
3.Shaft Float≤0.8mm
4..Samples for testing are available.
5. Lower resistance
6. Small maintain work
7. High load capability

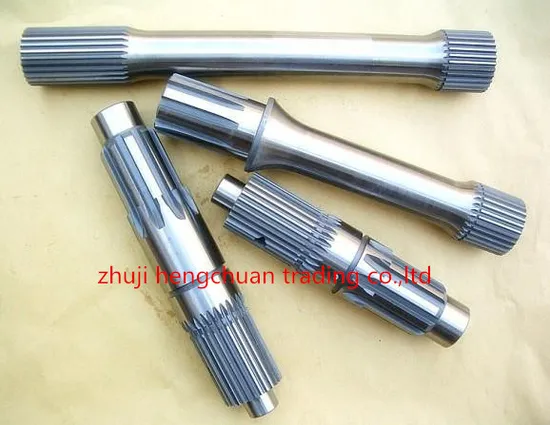

8. Dust proof & water proof CONVRYOR ROLLER SHAFTS

We can produce roller shafts and We do customeized

Product Size:φ10mm - 70mm

Max Length: 3000mm

Surface Tolerance: g6

Surface Roughness:0.8mm

Specification	ASTM A108 AS1443
Steel Grade	Q235B,C1020,C1045(we can also do other steel grade per your requirments)
Size	Φ18mm-φ62mm
Diameter Tolerance	ISO286-2,H7/H8
Straightness	2000:1

O.D	63.5-219.1mm
W .T	0.45-20mm
Length	6--12m
Standard	SANS 657/3,ASTM 513,AS 1163,BS6323,EN10305
Material	Q235B, S355,S230,C350,E235 etc.
Technique	Welded,Seamless
Surface	oiled ,galvanized or painted with all kinds of colors according to client's request.
Ends	1.Plain ends,
	2.Threading at both side with plastice caps
	3.Threading at both side with socket/coupling.
	4.Beveled ends, and so on
Packing	1.Water-proof plastic cloth,
	2.Woven bags,
	3.PVC package,
	4.Steel strips in bundles
	5.As your requirment
Usage	1.For low pressure liquid delivery such as water,gas and oil.
	2.For construction
	3.Mechanical equipment
	4.For Furniture
Payment&Trade Terms	1.Payment : T/T,L/C, D/P, Western union
	2.Trade Terms:FOB/CFR/CIF
	3.Minimum quantity of order : 10 MT (10,000KGS)
Delivery Time	1.Usually,within10-20days after receiving your down payment.
	2.According to the order quantity

Conveyor Roller Tube

Conveyor Roller Tube	Specification	SANS657/3,ASTM513,AS1163,BS6323,EN10305 or equivalent international standard.
	Steel grade	S355/S230,C350,E235,Q235B
	Sizes	63.5mm-219.1mm ect
	Ovality tolerance of body	≤0.4mm(60.3mm-152.4mm)
		≤0.5mm(159MM-168.3mm)
		≤0.6mm(178mm-219mm)
	Straightness	2000:1

if you are interesting in our products or want any further information, please feel free to contact us!
I am looking forward to your reply.
Best regards
Ruth
Website: hengchuanwin.en.made-in-china.com.
ZHUJI HENGCHUAN TRADING CO., LTD
1801 Huahui Building, No.268 Xierhuan Road, Zhuji City, Zhejiang Province, China

---
