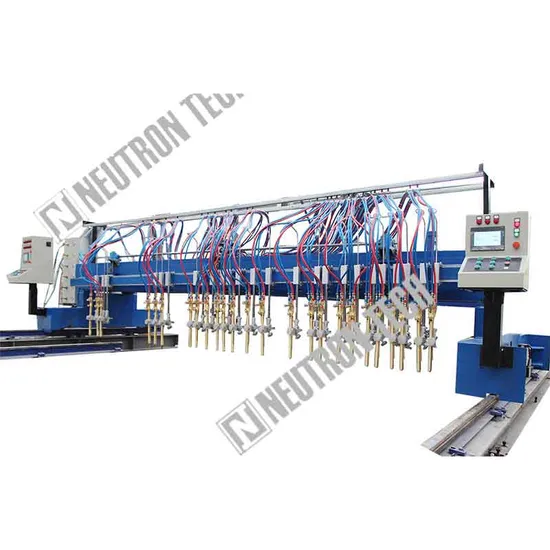

CNC Flame Plasma Cutting Machine

Product Description

Product parameters

Track width(mm)	3000\3500\4000\5000\6000\7000
Working width (mm)	2200\2700\3200\4200\5200\6200
Overall width (mm)	3800\4300\4800\5800\6800\7800
CNC system	Micro Edge pro, or famous domestic brands according to customer's requirements
Cutting mode	Flame cutting and plasma cutting
Driven system	Double-side Panasonic servo driven system
Torch lifting stroke(mm)	170,200(Optional)
Ldle stroke speed(mm/min)	0-10000
Cutting speed(mm/min)	0-4000
Flame cutting thickness(mm)	2-300
Fuel gas type	Acetylene, propane, natural gas
Plasma cutting thickness	Decided by plasma power source
Foundation type	H-beam steel or cement base, standard configuration is H-beam steel

Product display
Customer visit
Certifications
Packing & Shipment
FAQ:
1.Does your company accept customized offer, we have special need?
We are a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
2.What certificate the machine in your company get?
We've passed the ISO9001 Quality System Approval and CE Certification.

3.What's your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.

5.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
6.Does have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)

---
