Product Application.
AT225 Laboratory Melt Spinning Machine is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling.
Model
| AT225
|
Pressure range
| Design pressure: 3.6MPaInput pressure: ≤13MPa, Output pressure: ≤1.6MPa,accuracy: ±0.01MPa
|
Temperature range
| 450℃ max.
|
Temperature accuracy
| ±0.5℃
|
Heating mode
| Two sections of heating furnace, Mullite fiber insulation
|
Temperature control mode
| Two pieces of temperature controller, high precision of ±0.5℃
|
Feed cylinder
| 150ml, stainless steel, with soaking distribution device
|
Spinneret plate
| Dia. 0.2, 0.3, 0.4, 0.5 optional
L: D: 2:1~3:1 optional
kinds of hole optional
(please specify before order)
|
Rotary head
| Friction driven rotary head
|
Speed range
| 0~1400 RPM
|
Winder Dia.
| 200 mm or adjusted
|
Max. Winder dia.
| 320mm
|
Rotary head
| Friction driven rotary head
|
Power supply
| AC110V, 50Hz
|
Weights
| 260 kg
|
Dimension
| 730*720*1685
|
Details & Features
Touch Screen Control
> Large LCD display
> Touch screen control make the operation simple
> English and Chinese language selectable
Modularization Design
> Three section heat area，control individually.
> Interior of machine equip with lighting device.
> electric fan cooling system
Removable Winder
> will able to replace the winder by new one with different Diameter.
> Rotate Speed adjustable to make fiber with different fineness.

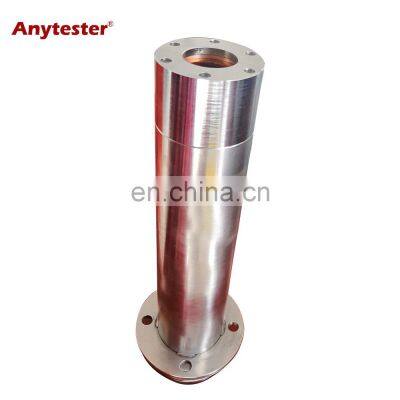

316L Feed Cylinder
> High quality 316L stainless steel make the machine long life
> 150 ml standard tank volume
> Able to accommodate 10~100 g raw material
Sample after test
> Be suitable for researching carbon fiber，PET, kinds of polymer， etc.
>10 g sample can spinning 100 minutes
>For 0.15mm spinnret hole, finished fiber with 5~15 um dia.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Certifications
Packing & Delivery
Packaging
|
Size(cm)
| 73 (L) * 72 (W) * 168.5 (D)
|
Weight
| 260 Kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
FOB
|
CFR(C&F)
|
30% T/T in advance, paid the balance before shipment
|
CIF
|
L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
West Union
|
Amount lower than 5000usd
|
West Union
|
Delivery Time
| 30~40 days after receiving payment for one container
|
